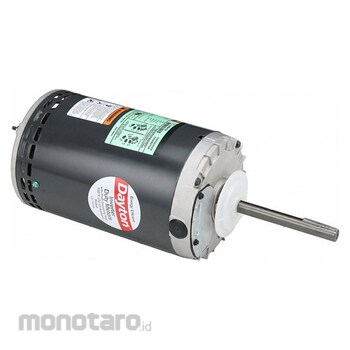

DAYTON Condenser Fan AC Motor
#Grup produk P109394158
Kondisi Barang:
Bergaransi
Informasi selengkapnya terkait garansi
dapat ditemukan pada Rincian Produk
dapat ditemukan pada Rincian Produk
Garansi Produk: WARRANTY MonotaRO Private Brand (1 year)
Sebelum PPN:
Rp3.699.900 - Rp28.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| UNSPSC | 26101602 |
|---|---|
| Duty cycle | Continuous |
| Frequency (Hz) | 60 |
| Motor Application | HVAC/R |
| Motor Service Factor | 1 |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | Condenser Fan |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Three-phase inverter duty condenser fan AC motors, also known as inverter rated or vector duty, can be controlled with a variable frequency drive (VFD) for more control over torque and speed for greater efficiency compared to single-phase motors. Some motors come with shaft grounding rings that provide a path for voltage spikes to bypass metal bearing components and protect them from damage due to electrical arcing.
Feature
Condenser Fan Motor Three Phase Motor Design 3-Phase 1 HP Nameplate RPM 850 No of Speeds 1 Voltage 208-230/460V AC 5.0-5.0/2.5 Full Load Amps 56YZ Frame 60 Hz Motor Service Factor 1 Motor Thermal Protection T-Stat Ins. Class F Duty Cycle Continuous Max Ambient Temp 70 Degrees C Motor Shaft Rotation CW/CCW Motor Enclosure Design Open Air-Over Motor Mounting Type Band Inverter Rated Yes Motor Mounting Position Vertical Shaft Up Shaft Length 5 5/8 in Lead Length 6 inUlasan Produk
