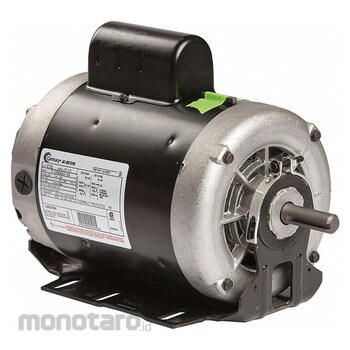

CENTURY Belt Drive HVAC AC Motor
#Grup produk P109393858
Sebelum PPN:
Rp4.599.900 - Rp15.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Duty cycle | Continuous |
|---|---|
| Maximum Ambient Temperature (°F) | 104 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Capacitor-start belt drive HVAC AC motors have a capacitor to provide additional power during startup for higher starting torque. This higher torque allows these single-phase motors to move heavier loads at lower speeds.
Feature
Belt Drive Motor Single Phase Motor Design Capacitor-Start 1 1/2 HP Nameplate RPM 3 450 No of Speeds 1 Voltage 115/208-230V AC 8.6-8.0/16.0 Full Load Amps 56 Frame Usable @ 208V Yes Usable @ 200V No 60 Hz Motor Service Factor 1.2 Motor Thermal Protection Auto Ins. Class B Max Ambient Temp 104 Degrees F Duty Cycle Continuous Motor Shaft Rotation CW/CCW Motor Enclosure Design Open Dripproof Motor Mounting Type Cradle Base Motor Mounting Position All AngleUlasan Produk
