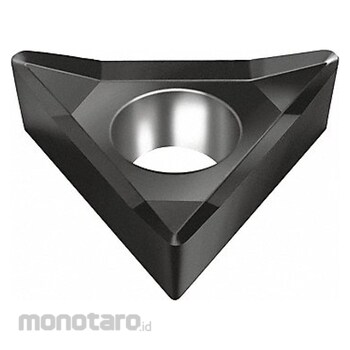

WALTER VALENITE Triangle ( T ) Indexable Turning Insert
#Grup produk P109392691
Spesifikasi
| UNSPSC | 23171618 |
|---|---|
| ANSI Code | TCGT2(1.5)1-MN2 WNN10 |
| Chip-Breaker | Yes |
| Chip-Breaker Code | MN2 |
| Clearance Angle (°) | 7 |
| Corner Radius (mm) | 0.4 |
| Cutting Application | Turning |
| Cutting Direction | Neutral |
| Cutting Edge Length (mm) | 11 |
| Depth of Cut (mm) | 0.60 to 3 |
| Finish - Machining | TiAlN |
| ISO Number | TCGT110204-MN2 WNN10 |
| Included Angle (°) | 60 |
| Inscribed Circle (inch) | 1/4 |
| Insert Code | TCGT21.51 |
| Insert Holding Type | 40° to 60° Countersink Hole |
| Insert Style | TCGT |
| Manufacturer Grade | WNN10 |
| Material - Machining | Carbide |
| Measurement System | Metric |
| Number of Cutting Edges | 3 |
| Primary Material Application | Aluminium, Brass, Bronze, Copper, Magnesium |
| Primary Material Application ISO Code | N |
| Rake | Positive |
| Shape | Triangle |
| Thickness (mm) | 2.38 |
| Through Hole Inside Dia. (mm) | 2.8 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
Triangle Turning Insert Chip-Breaker Code MN2 Inscribed Circle 1/4 in TiAlNUlasan Produk
