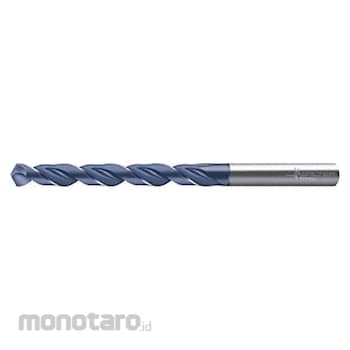

WALTER TITEX Taper-Length Drill Bit
#Grup produk P109392637
Spesifikasi
| UNSPSC | 27112801 |
|---|---|
| Coolant Fed | Non-Coolant Through |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.2008 |
| Depth:Dia. Ratio | 8xD |
| Drill Bit Point Angle (°) | 118 |
| Drill Bit Point Type | 6 Facet Point |
| Drill Bit Size (mm) | 5.1 |
| Drill Diameter Tolerance | H8 |
| Drill Length Class | Taper Length |
| Drill Point Length (mm) | 1.53 |
| Finish - Machining | TiNAl |
| Flute Length (inch) | 2-3/64 |
| Flute Type | Spiral |
| Material - Machining | High Speed Steel |
| Material Grade - Machining | M42 |
| Maximum Drilling Depth (inch) | 2-3/64 |
| Measurement System | Metric |
| Number of Flutes | 2 |
| Overall Length (mm) | 86 |
| Primary Material Application | Aluminium, Brass, Bronze, Copper, Stainless Steel |
| Primary Material Application ISO Code | M; N |
| Secondary Material Application | Composite; Nickel; Steel; Titanium |
| Secondary Material Application ISO Code | O; P; S |
| Shank Diameter (mm) | 5.1 |
| Shank Length (mm) | 34 |
| Shank Type - Machining | Straight |
| Sheeter Drill | No |
| Standards | DIN 338 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
The TiNAl coating on these drill bits provides a low-friction surface on the tool and is suitable for drilling most materials. High-speed steel drill bits provide more flexibility and absorb more shock and vibration than cobalt and carbide drill bits, making them suitable for use in manual drilling machines and handheld power tools. They may leave a rough finish on the hole. These bits have spiral flutes that evacuate chips as the bits drill into a workpiece.
Feature
Taper Length Drill Bit Drill Bit Size 5.10 mm Drill Bit Point Angle 118 Degrees 6 Facet Point High Speed Steel TiNAlUlasan Produk
