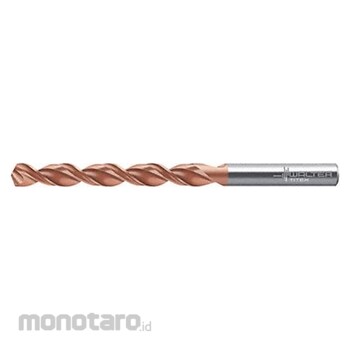

WALTER TITEX Non-Coolant-Through High-Speed Steel Jobber-Length Drill Bit
#Grup produk P109392619
Spesifikasi
| UNSPSC | 27112801 |
|---|---|
| Coolant Fed | Non-Coolant Through |
| Cutting Direction | Right Hand |
| Depth:Dia. Ratio | 8xD |
| Drill Bit Point Type | Conical Point |
| Drill Diameter Tolerance | H8 |
| Drill Length Class | Jobber Length |
| Material - Machining | High Speed Steel |
| Number of Flutes | 2 |
| Shank Type - Machining | Straight |
| Sheeter Drill | No |
| Standards | DIN 338 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
The AlCrN coating on these drill bits protects them from wear during dry, high-speed machining applications. It is harder, resists cracking and oxidization better, and performs better in high-feed applications than a TiAlN coating. It also resists high heat better than an AlTiN coating. Parabolic-flute drill bits have wide, deep flutes that improve chip flow and heat dissipation, which means feed rates do not need to be reduced as the drills move deeper into the workpiece. These bits have a straight shank that installs into a drill chuck or similar toolholder.
Feature
Jobber Length Drill Bit Drill Bit Size 1/8 in Drill Bit Point Angle 130 Degrees High Speed Steel AlCrN Decimal Equivalent 0.1250 Fractional Inch Drill Bit Point Type Conical Point Non-Coolant ThroughUlasan Produk
