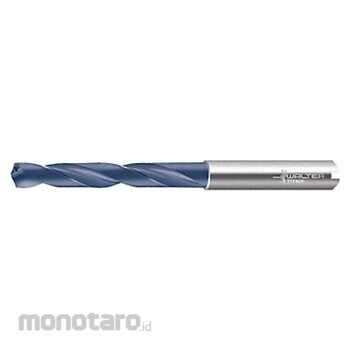

WALTER TITEX Coolant-Through Solid Carbide Jobber-Length Drill Bit
#Grup produk P109392576
Spesifikasi
| UNSPSC | 27112801 |
|---|---|
| Aircraft Drill | Yes |
| Coolant Fed | Coolant Through |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.4134 |
| Depth:Dia. Ratio | 5xD |
| Drill Bit Point Angle (°) | 140 |
| Drill Bit Point Type | Self-Centering Point |
| Drill Bit Size (mm) | 10.5 |
| Drill Diameter Tolerance | M7 |
| Drill Length Class | Jobber Length |
| Drill Point Length (mm) | 1.91 |
| Finish - Machining | TiNAl |
| Flute Length (mm) | 71 |
| Flute Type | Spiral |
| Material - Machining | Carbide |
| Material Grade - Machining | WJ30RE |
| Maximum Drilling Depth (mm) | 56 |
| Measurement System | Metric |
| Number of Coolant Holes | 2 |
| Number of Flutes | 2 |
| Overall Length (mm) | 118 |
| Primary Material Application | Aluminium, Brass, Bronze, Cast Iron, Copper, Nickel, Steel, Titanium |
| Primary Material Application ISO Code | K; N; P; S |
| Series | Perform |
| Shank Diameter (mm) | 12 |
| Shank Length (mm) | 45 |
| Shank Type - Machining | Straight with Three Flats |
| Sheeter Drill | No |
| Standards | DIN 6537 L |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These drill bits have a TiNAl coating that provides a low-friction surface on the tool and is suitable for drilling most materials. The bits have spiral flutes that evacuate chips as the bits drill into a workpiece, and they have flats on their shank that help prevent the bits from slipping in a drill chuck when drilling at high speeds or under heavy loads.
Feature
Jobber Length Drill Bit Drill Bit Size 10.50 mm Drill Bit Point Angle 140 Degrees Carbide TiNAl Decimal Equivalent 0.4134 Metric Drill Bit Point Type Self-Centering Point Coolant Through Number of Coolant Holes 2Ulasan Produk
