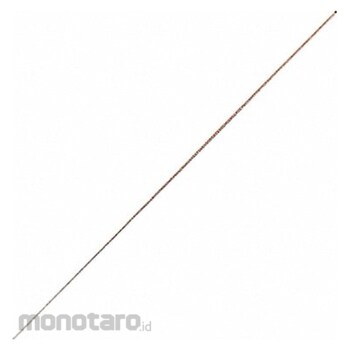

VERMONT GAGE Class X Go ( Plus ) Pin Gauge
#Grup produk P109392239
Spesifikasi
| UNSPSC | 41111619 |
|---|---|
| Diameter Increment (inch) | 0.0001 |
| Dimension Type | Inch |
| Finish | Uncoated |
| Gauge Type | Go (Plus) |
| Hardness | RC 60/65 |
| Included Certification | Certificate of Accuracy with NIST Traceability |
| Long Form Calibration Certificate | No |
| Material | Steel |
| Overall Length (inch) | 2 |
| Standards | ISO 17025 |
| Surface Finish | 4 Microinch or Better |
| Tolerance (inch) | 0.00004 |
| Tolerance Class | X |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Class X Go (Plus) plug and pin gauges are used to perform Go/No-Go tolerance tests on bores and holes. They are also used to calibrate equipment and to gauge parts directly. These gauges come with a short-form certificate of accuracy traceable to NIST that confirms they are within specs. This table contains gauges up to 0.0750 in diameter.
Feature
J5717 Class X Go Pin Gauge Material Steel Finish Uncoated Diameter 0.0094 in Diameter Increment 0.0001 in Diameter Range 0.0040 in to 0.0250 in Diameter Sub-Range 0.0051 in to 0.0100 in Dimension Type Inch Gauge Type Go (Plus) Included Certification Certificate of Accuracy with NIST Traceability Surface Finish 4 Microinch or Better Tolerance 0.00004 in Tolerance Class X Hardness RC 60/65 Long Form Calibration Certificate No Overall Length 2 in Standards ISO 17025Ulasan Produk
