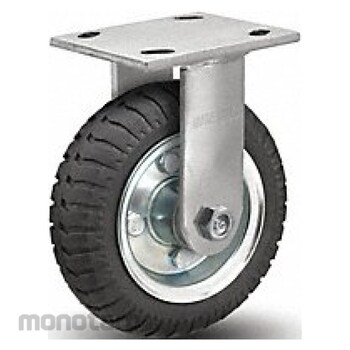

ALBION Smooth-Ride Pneumatic & Flat-Free Plate Caster
#Grup produk P109381729
Sebelum PPN:
Rp1.699.900 - Rp3.499.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| UNSPSC | 31162701 |
|---|---|
| Application | Material Handling; Utility Carts |
| Caster Brake Type | No Brake Included |
| Caster Frame Material | Steel |
| Caster Mounting Type | Plate |
| Core Color | Silver |
| Features | No Flats; Rejects Debris |
| Frame Finish | Zinc Plated |
| Includes | Assembly Components; Axle; Rig; Wheel |
| Includes Thread Guards | No |
| Mounting Bolt Dia. (inch) | 3/8 |
| Mounting Plate Bolt Hole Pattern | B |
| Mounting Plate Size (inch) | 4x4-1/2 |
| Non-marking | No |
| Number of Mounting Holes | 4 |
| Number of Wheels | 1 |
| Operating Temperature Range (°F) | -40 to 180 |
| Outside Bolt Hole Spacing (inch) | 3x3-5/8 |
| Swivel Construction | Kingpin |
| Swivel Lock Type | No Lock Included |
| Swivel Raceway Type | Double Ball |
| Tire Rim Dia. (inch) | 2-7/16 |
| Tread | Centipede |
| Tread Color | Black |
| Wheel Bearing Type | Ball |
| Wheel Core Material | Steel |
| Wheel Tread Material | Rubber |
| Wheel/Tread Hardness | 65-75 SHORE A |
| Wheel/Tread Hardness Rating | Soft |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
ESD static-control hanging and stacking bins reduce the amount of electrostatic energy passed through the bin to the items. They handle, transport, and store static-sensitive components and materials, such as computer chips, transistors, and light-emitting diodes (LED).
Feature
Caster Load Rating Range 0 to 299 lb Load Rating 280 lb Tread Centipede Wheel Dia 8 in Wheel Width 2 in Inside Bolt Hole Spacing 20 5/8 in x 3 in Outside Bolt Hole Spacing 3 in x 3 5/8 in Caster Brake Type No Brake Included Caster Product Group Rigid Caster Caster Sub-Type Rigid Operating Temperature Range -40 Degrees to 180 Degrees F Non-Marking No Wheel/Tread Material Rubber Tire Rim Dia 2 7/16 in Frame Finish Zinc Plated Tread Color Black Swivel Raceway Type Double BallUlasan Produk
