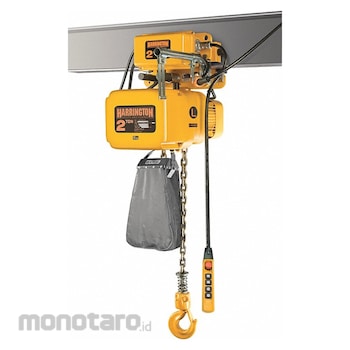

HARRINGTON Motorized-Trolley Electric Chain Hoist
#Grup produk P109373766
Spesifikasi
| UNSPSC | 24101706 |
|---|---|
| Body Depth (inch) | 19-7/16 |
| Body Finish | Enamel |
| Body Length (inch) | 25-7/16 |
| Body Material | Aluminium |
| Body Width (inch) | 16-7/16 |
| Brake Type | DC Current |
| Chain Finish | Nickel Plated |
| Chain Grade | Grade 80 |
| Chain Material | Alloy Steel |
| Clutch | Friction |
| Color | Yellow |
| Controller Cord Length (ft) | 16 |
| Controls | Push Button Pendant |
| Duty Classification | H4 - Heavy Duty |
| Features | Dual Speed Trolley VFD; Rubber Bumpers; Side Guide Rollers |
| Fixed Lift Speed (fpm) | 14 |
| For Beam Flange Width (inch) | 3-7/32 – 6-3/16 |
| For Maximum Beam Flange Width (inch) | 6-3/16 |
| For Minimum Beam Flange Width (inch) | 3-7/32 |
| For Minimum Beam Height (inch) | 4-29/32 |
| For Outdoor Use | Yes |
| Headroom (inch) | 22-13/32 |
| Hoist IP Rating | IP55 |
| Included Components | Chain Container; Pendant; Quick Disconnect Plugs on Pendant; Rubber Bumpers; Safety Latch Hook |
| Includes Brake | Brake Included |
| Includes Clutch | Clutch Included |
| Lift Length (ft) | 20 |
| Lift Speed (fpm) | 14 |
| Lifting Capacity (lbs) | 4000 |
| Lifting Hook Material | Carbon Steel |
| Lifting Hook Opening Width (inch) | 1-19/32 |
| Lifting Hook Type | Swivel Hook with Safety Latch |
| Manufacturer Part Number | NERM020L-L-20 |
| Max Current Draw (A) | 11.8 |
| Minimum Radius Curve (inch) | 31-1/2 |
| Minimum Retracted Length (inch) | 22-13/32 |
| Motor Horsepower (HP) | 2-3/8 |
| Mount Type | Motorized Trolley |
| Number of Load Chains | 1 |
| Number of Reeves | 1 |
| Number of Speeds | 1 |
| Operating Voltage (V) | 208-230/460 AC |
| Overload Protection Included | Yes |
| Pendant IP Rating | IP65 |
| Phase | 3 |
| Resistance Properties | Corrosion Resistant |
| Speed Programmability | Non-Programmable |
| Standards | ASME B30.16; UL 1340 |
| Thermal Protection | Included |
| Tonnage - Lifting Capacity (t) | 2 |
| Trolley IP Rating | IP55 |
| Trolley Speed (fpm) | 40 |
| Trolley Wheel Diameter (inch) | 4-9/10 |
| Trolley Wheel Material | Steel |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These extended-use motorized-trolley electric hoists are rated to exceed 300 starts/stops per hour. They are suitable for high-volume construction and manufacturing applications where loads are frequently lifted and positioned.
Feature
Electric Chain Hoist Duty Classification H4 Mount Type Motorized Trolley Maximum Lifting Capacity 4 000 lb Number of Speeds 1 Programmable Non-Programmable Fixed Lift Speed 14 fpm Minimum Lift Speed Not Applicable Maximum Lift Speed Not Applicable Trolley Speed 40 fpm Maximum Lifting Length 20 ft Current at Minimum Voltage 11.8 A Current at Maximum Voltage 1.7 A Motor Horsepower 2 3/8 hp Operating Voltage 208-230/460V AC Headroom 22 13/32 in For Minimum Beam Height 4 29/32 inUlasan Produk
