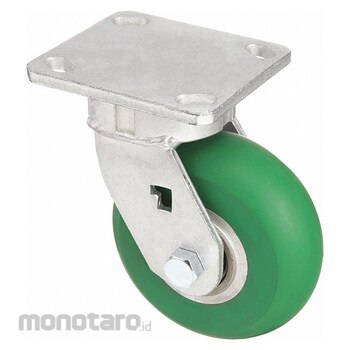

COLSON Impact-Resistant Kingpinless Plate Caster
#Grup produk P109369064
Spesifikasi
| UNSPSC | 31162701 |
|---|---|
| Application | Dollies; Dough Troughs; Platform Trucks; Scrap Metal Carriers; Tooling Fixtures; Tow Line; Utility Carts |
| Caster Brake Type | No Brake Included |
| Caster Frame Material | Aluminium |
| Caster Sub-Type | Swivel |
| Core Color | Silver |
| Frame Finish | Zinc Plated |
| Includes Thread Guards | No |
| Inside Bolt Hole Spacing (inch) | 3x3 |
| Load Rating (lbs) | 1000 |
| Mounting Bolt Dia. (inch) | 3/8 |
| Mounting Height (inch) | 6-1/2 |
| Mounting Plate Bolt Hole Pattern | B |
| Mounting Plate Size (inch) | 4x4-1/2 |
| Non-marking | Yes |
| Number of Mounting Holes | 4 |
| Number of Wheels | 1 |
| Outside Bolt Hole Spacing (inch) | 2-5/8x3-5/8 |
| Swivel Construction | Kingpinless |
| Swivel Lock Type | No Lock Included |
| Swivel Raceway Type | Single Ball |
| Tread Shape | Donut |
| Wheel Bearing Type | Precision Ball |
| Wheel Core Material | Aluminium |
| Wheel Dia. (inch) | 5 |
| Wheel Tread Material | Polyurethane |
| Wheel Width (inch) | 2 |
| Wheel/Tread Color | Green |
| Wheel/Tread Hardness | 95 Shore A |
| Wheel/Tread Hardness Rating | Firm |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Double profiles are stronger and more rigid than single profiles of the same series, making them suitable for use as beams or posts on large structural framing projects. These rectangular profiles have six slots, and connections can be made on all sides of the profiles. Each profile has one slot on each narrow side and two slots on each wide side.
Feature
Swivel Kingpinless Plate Caster Load Rating 1000 lb Swivel Lock Type No Lock Included Wheel Dia 5 in Wheel Width 2 in Wheel/Tread Material Polyurethane Wheel Core Material Aluminum Non-Marking Yes Number of Wheels 1 Caster Brake Type No Brake Included Tread Shape DonutUlasan Produk
