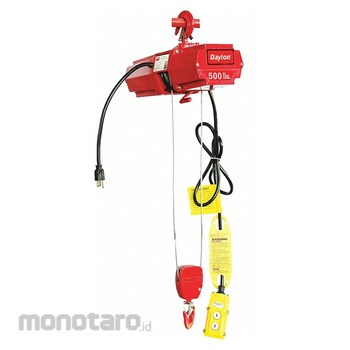

DAYTON Electric Cable Hoist
#Grup produk P109362380
Kondisi Barang:
Bergaransi
Informasi selengkapnya terkait garansi
dapat ditemukan pada Rincian Produk
dapat ditemukan pada Rincian Produk
Garansi Produk: WARRANTY MonotaRO Private Brand (1 year)
Spesifikasi
| UNSPSC | 24101602 |
|---|---|
| Body Depth (inch) | 4-5/8 |
| Body Length (inch) | 14-1/4 |
| Body Material | Steel |
| Body Width (inch) | 6 |
| Brake Type | Electric Disc Motor |
| Color | Red |
| Controller Cord Length (ft) | 6 |
| Controls | Pendant |
| Cord Diameter (inch) | 3-1/5 |
| Cord Material | Stainless Steel |
| Cord Type | Wire |
| Duty Classification | H2 - Light Duty |
| Fixed Lift Speed (fpm) | 10 |
| Headroom (inch) | 14-1/2 |
| Includes Brake | Brake Included |
| Includes Clutch | Clutch Included |
| Lift Length (ft) | 10 |
| Lift Speed (fpm) | 10 |
| Lifting Capacity (lbs) | 500 |
| Lifting Hook Material | Steel |
| Lifting Hook Opening Width (inch) | 1-9/32 |
| Lifting Hook Type | Hook with Safety Latch |
| Manufacturer Part Number | 4GU72 |
| Max Current Draw (A) | 3 |
| Maximum Cord Length (ft) | 6 |
| Minimum Cord Length (ft) | 10 |
| Minimum Retracted Length (inch) | 14-1/2 |
| Motor Horsepower (HP) | 1/8 |
| Mount Type | Hook Mounted - No Trolley |
| Number of Reeves | 1 |
| Number of Speeds | 1 |
| Operating Voltage (V) | 115 AC |
| Overload Protection Included | No |
| Pendant IP Rating | IP54 |
| Phase | 1 |
| Rope Length (ft) | 10 |
| Speed Programmability | Non-Programmable |
| Standards | CUL Listed; UL Listed |
| Sub Brand | Dayton |
| Thermal Protection | Included |
| Tonnage - Lifting Capacity (t) | 0.25 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Swingarm float liquid-level gauges have stems with extended arms that have a floating component that stays buoyant in the fluid and moves up and down as the liquid level changes to measure its level. These indicators are ideal for applications with narrow clearances or environments where vertical floats and level measuring sticks wouldn't work. They install onto the tops of vertically-oriented drums and tanks and provide continuous, reliable measurements without requiring a power source.
Feature
Electric Wire Rope Hoist Current at Minimum Voltage 3 A Duty Classification H2 Headroom 14 1/2 in Number of Speeds 1 Programmable Non-Programmable Fixed Lift Speed 10 fpm Minimum Lift Speed Not Applicable Maximum Lift Speed Not Applicable Maximum Lifting Capacity 500 lb Maximum Lifting Length 10 ft Motor Horsepower 1/8 hp Mount Type Hook Mounted - No Trolley Operating Voltage 115V AC Body Depth 4 5/8 in Body Length 14 1/4 in Body Material Steel Body Width 6 inDokumentasi Produk
