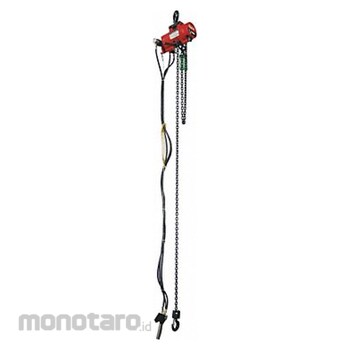

DAYTON Air Chain Hoist
#Grup produk P109351728
Kondisi Barang:
Bergaransi
Informasi selengkapnya terkait garansi
dapat ditemukan pada Rincian Produk
dapat ditemukan pada Rincian Produk
Garansi Produk: WARRANTY MonotaRO Private Brand (1 year)
Sebelum PPN:
Rp79.999.900 - Rp89.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| UNSPSC | 24101602 |
|---|---|
| Air Consumption (scfm) | 48 @ 90psi |
| Air Inlet Gender | Female |
| Air Inlet Size (inch) | 3/8 |
| Air Inlet Type | NPT |
| Body Depth (inch) | 10 |
| Body Finish | Painted |
| Body Length (inch) | 12-1/8 |
| Body Material | Cast Aluminium |
| Body Width (inch) | 10-3/16 |
| Brake Type | Disc |
| Chain Finish | High Gloss |
| Chain Grade | Grade 80 |
| Chain Material | Alloy Steel |
| Color | Red |
| Controls | Pendant |
| Included Components | External Speed Adjustment Screws |
| Includes Brake | Brake Included |
| Includes Clutch | Clutch Not Included |
| Lifting Hook Material | Alloy Steel |
| Lifting Hook Opening Width (inch) | 1-1/16 |
| Lifting Hook Type | Swivel Hook with Safety Latch |
| Maximum Air Consumption (SCFM) | 48 |
| Maximum Air Pressure (psi) | 90 |
| Minimum Air Consumption (scfm) | 48 |
| Minimum Air Pressure (psi) | 90 |
| Mount Type | Hook Mounted - No Trolley |
| Overload Protection Included | No |
| Sound Level (dBA) | 92 |
| Standards | ANSI/ASME B30.16 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These general purpose air chain hoists move large and heavy loads.
Feature
Air Chain Hoist Mount Type Hook Mounted - No Trolley Maximum Lifting Capacity 1 000 lb Fixed Lift Speed 45 fpm Air Inlet Type NPT Controls Pendant For Minimum Beam Flange Width Not Applicable For Maximum Beam Flange Width Not Applicable Headroom 15 1/4 in Maximum Air Pressure 90 psi Maximum Lifting Length 20 ft Maximum Air Consumption 48 scfm Air Inlet Gender Female Air Inlet Size 3/8 in Body Depth 10 in Body Length 12 1/8 in Body Material Cast Aluminum Body Width 10 3/16 inDokumentasi Produk
