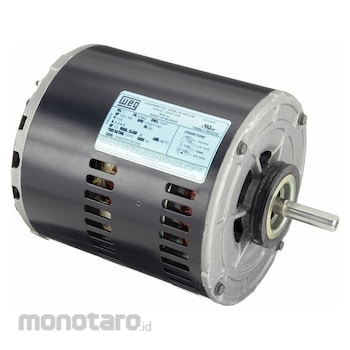

WEG Evaporative Cooler AC Motor
#Grup produk P109349884
Sebelum PPN:
Rp3.399.900 - Rp6.699.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| UNSPSC | 26101602 |
|---|---|
| Body Dia. | 6-7/16 |
| Features | Epoxy Paint Over a Layer of Zinc Phosphate Helps Prevent Corrosion |
| Frame | 56 |
| Frequency (Hz) | 60 |
| Ins. Class | B |
| Maximum Ambient Temperature (°C) | 40 |
| Motor Application | HVAC/R |
| Motor Bearings | Ball |
| Motor Enclosure Design | Open Dripproof |
| Motor Mounting Type | Ring |
| Motor Service Factor | 1 |
| Motor Shaft Rotation | CWSE |
| Motor Sub Application | Evaporator Cooler |
| Motor Thermal Protection | Auto |
| Phase | Single |
| Resilient Ring Dia. (in) | 2-1/2 |
| Standards | UL Recognized for US and Canada |
| Usable @ 200V | No |
| Usable @ 208V | No |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Split-phase evaporative cooler AC motors are single phase with a lower starting torque for softer startup where the cooling fan must gradually come up to speed after startup.
Feature
Evaporative Cooler Motor Single Phase Motor Design Split-Phase 1/2 1/6 HP Nameplate RPM 1 800/1 200 No of Speeds 2 Voltage 115V AC 8.2/4.6 Full Load Amps 56 Frame 60 Hz Usable @ 208V No Usable @ 200V No Motor Service Factor 1 Motor Thermal Protection Auto Ins. Class B Max Ambient Temp 40 Degrees C Motor Shaft Rotation CWSE Motor Enclosure Design Open Dripproof Motor Mounting Type Ring Motor Mounting Position All Angle Shaft Length 1 7/8 in Shaft Dia 1/2 inUlasan Produk
