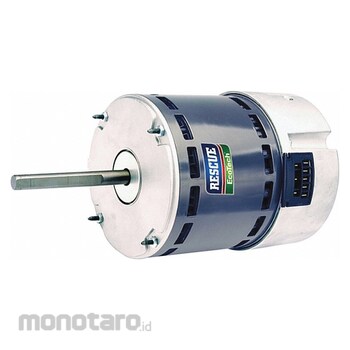

U.S. MOTORS Direct Drive Blower HVAC AC Motor
#Grup produk P109349060
Sebelum PPN:
Rp10.999.900 - Rp13.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| UNSPSC | 26101603 |
|---|---|
| Body Dia. (in) | 5-5/8 |
| Capacitor Required | No |
| Duty cycle | Continuous |
| Frame | 48Y |
| Frequency (Hz) | 60/50 |
| Ins. Class | B |
| Motor Application | HVAC/R |
| Motor Bearings | Ball |
| Motor Design | ECM |
| Motor Enclosure Design | Open Air-Over |
| Motor Mounting Type | Band |
| Motor Service Factor | 1 |
| Motor Shaft Design | Flat |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | Direct Drive Fan/Blower |
| Motor Thermal Protection | Auto |
| Nameplate RPM | 1,075 |
| Nominal Efficiency (%) | 0.82 |
| Number of Shafts | 1 |
| Phase | Single |
| Shaft Dia. | 1/2 |
| Standards | CSA Certified; UL Recognized |
| Usable @ 200V | No |
| Usable @ 208V | Yes |
| Voltage (V AC) | 115/208-230 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Electronically commutated (EC) direct drive blower HVAC AC motors have a built-in microprocessor controller that allows users to control the motor speed. They are more energy efficient than general purpose AC motors and can replace direct-drive motors in fans and blowers.
Feature
Direct Drive Blower Motor Single Phase Motor Design ECM 1/3 1/5 HP Nameplate RPM 1 075 No of Speeds 5 Voltage 115/208-230V AC Full Load Amps 4.2/2.7 48Y Frame Usable @ 208V Yes Usable @ 200V No Motor Thermal Protection Auto 60/50 Hz Hz Motor Service Factor 1 Ins. Class B Motor Shaft Rotation CW/CCW Max Ambient Temp 60 Degrees C Duty Cycle Continuous Lead Length 36 in Motor Enclosure Design Open Air-Over Motor Mounting Type Band Motor Mounting Position All AngleUlasan Produk
