NORTHLAND MOTOR TECHNOLOGIES Brushless Blower
#Grup produk P109343792
Sebelum PPN:
Rp13.999.900 - Rp17.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| UNSPSC | 26101603 |
|---|---|
| Blower Type | Tangential Discharge |
| Bolt Circle Dia. (in) | 6-1/2 |
| Frequency (Hz) | 60/50 |
| Height | 5-11/16 |
| Ins. Class | B |
| Maximum Ambient Temperature (°C) | 50 |
| Motor Application | Washdown |
| Motor Bearings | Ball |
| Motor Enclosure Design | Open |
| Motor Mounting Position | All Angle |
| Motor Sub Application | Direct Drive Fan/Blower |
| Motor Thermal Protection | Auto |
| Phase | Single |
| Standards | C22.2 77-95; C22.2 NO. 100-04; CAN/CSA-E60730-1:02; UL 1004; UL 211; UL 507; UL 60730-1A |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

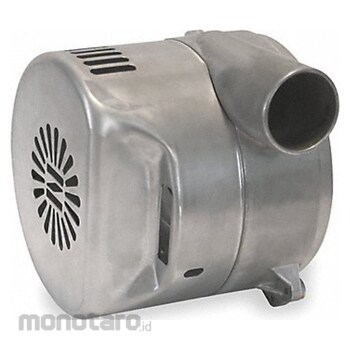

These 5.7-inch body diameter brushless blowers are powered by an electronically-commutated motor (ECM) to create vacuum suction and air flow (CFM) discharge.
Feature
Brushless Blower Single Phase Voltage 115V AC Full Load Amps 5.0 Blower Type Tangential Discharge Watts 400 W Max Amps 5.2 A 60/50 Hz Motor Thermal Protection Auto Ins. Class B Max Ambient Temp 50 Degrees C Motor Enclosure Design Open Motor Mounting Position All Angle Vacuum Rating 65 in wc CFM 47 cfm Motor Bearings Ball Blower Stages 3 Overall Length 7 1/2 in Length Less Shaft 6 13/16 in Height 5 11/16 inUlasan Produk
