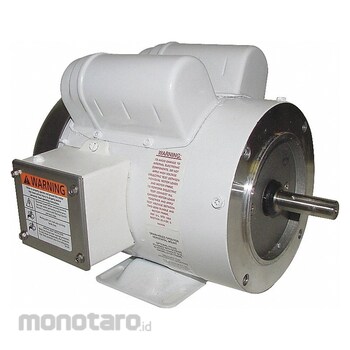

MARATHON MOTORS Washdown AC Motor
#Grup produk P109342845
Sebelum PPN:
Rp16.999.900 - Rp19.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| UNSPSC | 26101604 |
|---|---|
| Body Dia. (in) | 6.5 |
| Drain Plugs | (4) Each End, (2) In Conduit Box |
| Duty cycle | Continuous |
| Endshield Material | Epoxy Painted Aluminium |
| Frame | 56C |
| Frequency (Hz) | 60 |
| Ins. Class | F |
| Maximum Ambient Temperature (°C) | 40 |
| Motor Application | Washdown |
| Motor Bearings | Ball |
| Motor Design | Capacitor-Start |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| Motor Frame Material | Steel |
| Motor Mounting Position | All Angle |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CCW; CW |
| Motor Thermal Protection | None |
| NEMA Design | N |
| Nameplate RPM | 1,725 |
| No. of Speeds | 1 |
| Phase | Single |
| Product Type | Washdown Motor |
| Shaft Dia. | 5/8 |
| Shaft Length (in) | 1-7/8 |
| Shaft Material | Stainless Steel |
| Standards | CSA Certified (LR63596); UL Recognized (E47479); USDA Approved |
| Usable @ 200V | No |
| Usable @ 208V | Yes |
| Voltage (V AC) | 115/208-230 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Painted epoxy-coated washdown AC motors have a white epoxy finish that is USDA approved and is resistant to caustic cleaning solutions.
Feature
Washdown Motor Single Phase Motor Design Capacitor-Start 1/2 HP Nameplate RPM 1 725 No of Speeds 1 Voltage 115/208-230V AC Full Load Amps 8.8/4.4 A 56C Frame Usable @ 208V Yes Usable @ 200V No 60 Hz Hz Motor Service Factor 1.15 Motor Thermal Protection None Ins. Class F Max Ambient Temp 40 Degrees C Duty Cycle Continuous NEMA Design N Motor Shaft Rotation CCW CW Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Mounting Type Face/BaseUlasan Produk
