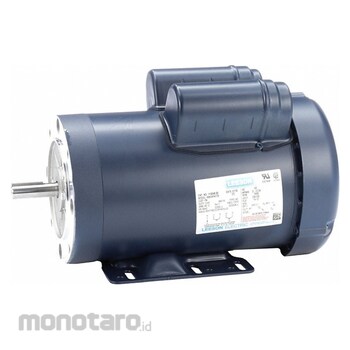

LEESON Pressure Washer Pump AC Motor General Purpose
#Grup produk P109341961
Spesifikasi
| UNSPSC | 26101602 |
|---|---|
| Bearing Protection | Double Shield |
| Body Dia. (in) | 7.7 |
| Bolt Circle Dia. (in) | 5-5/8 |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1 |
| Duty cycle | Continuous |
| Finish | Enamel |
| Frame | 56HC |
| Frequency (Hz) | 60 |
| Full Load Amps | 14.0-13.0 |
| HP | 3 |
| Height (in) | 8-1/2 |
| Includes | Key |
| Ins. Class | F |
| Inverter Rated | No |
| Inverter Rating | No |
| Lead Length (in) | 6 |
| Length Less Shaft (in) | 12 |
| Manufacturer Part Number | 115048 |
| Maximum Ambient Temperature (°F) | 104 |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | Capacitor-Start |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| Motor Frame Material | Rolled Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | Manual |
| NEMA Design | L |
| Nameplate RPM | 3,450 |
| No. of Speeds | 1 |
| Nominal Efficiency (%) | 81.5 |
| Number of wires | 5 |
| Overall Length (in) | 14 |
| Part Winding Start Capable | No |
| Phase | Single |
| Regreasable Bearings | Permanently Lubricated Bearings |
| Shaft Dia. | 5/8 |
| Shaft Length (in) | 1-7/8 |
| Shaft Material | 1144 Stressproof Carbon Steel |
| Standards | CSA; UL Recognized |
| Starter Required | No |
| Usable @ 200V | No |
| Usable @ 208V | Yes |
| Voltage (V AC) | 208-230 |
| Weight (lbs) | 49 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Capacitor-start pressure washer AC motors use a capacitor to provide additional power during startup for higher torque and better efficiency.
Feature
General Purpose Motor Bearing Protection Double Shield Body Dia 7.7 in Bolt Circle Dia 5 5/8 in Conduit Box Location Exterior Conduit Box Position F1 Duty Cycle Continuous Finish Enamel Frame 56HC Hz 60 Full Load Amps 14.0-13.0 Height 8 1/2 in HP 3 hp Includes Key Ins. Class F Inverter Rated No Inverter Rating No Lead Length 6 in Length Less Shaft 12 in Manufacturers Warranty Length 18 mo Max Ambient Temp 104 Degrees F Motor Application General ApplicationUlasan Produk
