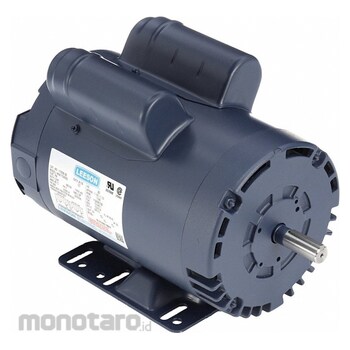

LEESON Pressure Washer Pump AC Motor
#Grup produk P109341943
Spesifikasi
| UNSPSC | 26101602 |
|---|---|
| Frame | 56H |
| Frequency (Hz) | 60 |
| Full Load Amps (A) | 13.4/6.7 |
| HP | 1-1/2 |
| Includes | Key |
| Ins. Class | B |
| Manufacturer Part Number | 113266 |
| Motor Application | Pressure Washer |
| Motor Bearings | Ball |
| Motor Design | Capacitor-Start/Run |
| Motor Enclosure Design | Open Dripproof |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | Manual |
| Nameplate RPM | 1,740 |
| Phase | Single |
| Shaft Dia. | 5/8 |
| Shaft Length (in) | 1-7/8 |
| Standards | CSA; UL Recognized |
| Usable @ 200V | No |
| Usable @ 208V | Yes |
| Voltage (V AC) | 115/208-230 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Capacitor-start/run pressure washer pump AC motors have a main winding and an auxiliary winding with both a start capacitor and a run capacitor for additional power during startup for higher torque and higher operating efficiency.
Feature
Pressure Washer Motor Capacitor-Start/Run Open Dripproof 1 1/2 hp HP 1 740 Nameplate RPM 56H Frame CW/CCW Motor Shaft Rotation Voltage 115/208-230V AC 13.4/6.7 A Full Load Amps Single Phase 60 Hz Hz Rigid Base Motor Mounting Type Motor Bearings Ball Motor Thermal Protection Manual 1.15 Motor Service Factor Ambient Temperature 40 Degrees C Shaft Dia 5/8 in Shaft Length 1 7/8 in Ins. Class B Standards CSA UL Recognized Includes KeyUlasan Produk
