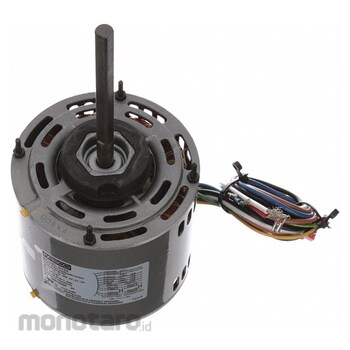

FASCO Direct Drive Blower HVAC AC Motor
#Grup produk P109337977
Sebelum PPN:
Rp3.599.900 - Rp4.499.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| UNSPSC | 26101602 |
|---|---|
| Body Dia. (in) | 5-5/8 |
| Bolt Circle Dia. (in) | 5-1/4 |
| Duty cycle | Continuous |
| Frame | 48 |
| Frequency (Hz) | 60 |
| Ins. Class | B |
| Lead Length (in) | 26 |
| Length Less Shaft (in) | 4-5/8 |
| Maximum Ambient Temperature (°C) | 40 |
| Motor Application | HVAC/R |
| Motor Bearings | Sleeve |
| Motor Design | Permanent Split Capacitor |
| Motor Frame Material | Steel |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Stud |
| Motor Service Factor | 1 |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | Direct Drive Fan/Blower |
| Motor Thermal Protection | Auto |
| Mounting Stud Location | 4/Shaft End |
| Nameplate RPM | 1,075 |
| No. of Speeds | 3 |
| Number of Shafts | 1 |
| Phase | Single |
| Resilient Ring Dia. (in) | 2-1/2 |
| Shaft Dia. | 1/2 |
| Shaft Length (in) | 6 |
| Standards | CSA Certified; UL Recognized |
| Stud Size | #8-32 |
| Usable @ 200V | No |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Permanent split capacitor (PSC) direct drive blower HVAC AC motors have a capacitor that decreases the amount of power consumed for a given load making them more energy efficient than shaded pole motors. They provide smooth, soft, start-ups in fans, blowers, and other compatible HVAC equipment.
Feature
Direct Drive Blower Motor Single Phase Motor Design Permanent Split Capacitor 1/2 1/3 1/4 HP Nameplate RPM 1 075 No of Speeds 3 Voltage 208-230V AC Full Load Amps 4.0-2.7-2.00 48 Frame Usable @ 208V Yes Usable @ 200V No Motor Thermal Protection Auto 60 Hz Hz Motor Service Factor 1 Ins. Class B Motor Shaft Rotation CW/CCW Max Ambient Temp 40 Degrees C Duty Cycle Continuous Lead Length 26 in Motor Enclosure Design Open Dripproof Motor Mounting Type StudUlasan Produk
