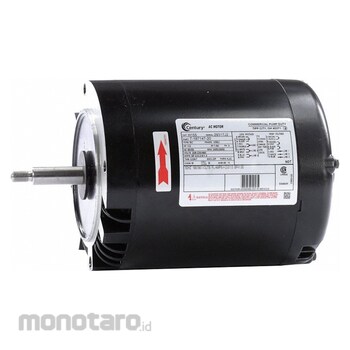

CENTURY Jet Pump AC Motor
#Grup produk P109336002
Sebelum PPN:
Rp9.399.900 - Rp15.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| UNSPSC | 26101612 |
|---|---|
| Bearing Protection | Shaft Shields |
| Body Dia. (in) | 6.4 |
| Bolt Circle Dia. (in) | 5-7/8 |
| Duty cycle | Continuous |
| Frame | 56J |
| Height | 6-7/16 |
| Ins. Class | B |
| Maximum Ambient Temperature (°F) | 104 |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Type | Face |
| Motor Shaft Design | Threaded |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | None |
| NEMA Design | None |
| Nameplate RPM | 3,450/2,850 |
| No. of Speeds | 2 |
| Phase | Three |
| Shaft Dia. | 5/8 |
| Shaft Length (in) | 2-5/8 |
| Shaft Material | Stainless Steel |
| Standards | CSA Certified; UL Recognized |
| Usable @ 200V | No |
| Usable @ 208V | Yes |
| Voltage (V AC) | 208-230/460 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Three-phase jet pump AC motors are highly efficient with a high starting torque compared to single-phase models of the same HP, rpm, and frame size. They operate without start or run capacitors that can wear out and fail.
Feature
General Purpose Pump Motor Bearing Protection Shaft Shields Body Dia 6.4 in Bolt Circle Dia 5 7/8 in Duty Cycle Continuous Frame 56J Hz 60 Full Load Amps 2.6-2.6/1.3 Height 6 7/16 in HP 1/2 hp Ins. Class B Length Less Shaft 8 1/2 in Max Ambient Temp 104 Degrees F Max SF Amps 2.6-2.6/1.3 A Motor Application General Application Motor Bearings Ball Motor Design 3-Phase Motor Efficiency Group Standard Efficient Motor Enclosure Design Open Dripproof Motor Frame Material SteelUlasan Produk
