ACME-MIAMI C-Frame HVAC AC Motor
#Grup produk P109332714
Spesifikasi
| UNSPSC | 26101602 |
|---|---|
| Capacitor Required | No |
| Duty cycle | Continuous |
| Frame | Non-Standard |
| Frequency (Hz) | 60/50 |
| Full Load Amps | 0.91/0.45 |
| HP | 1/55 |
| Includes | (3) 5 in Diameter Fan Blades, (3) 5-1/2 in Diameter Fan Blades, (3) 6 in Diameter Fan Blades, Mounting Blocks |
| Ins. Class | B |
| Length Less Shaft (in) | 1-5/8 |
| Maximum Ambient Temperature (°C) | 40 |
| Motor Application | HVAC/R |
| Motor Bearings | Sleeve |
| Motor Design | Shaded Pole |
| Motor Enclosure Design | Open Air-Over |
| Motor Mounting Type | Stud |
| Motor Service Factor | 1 |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | Direct Drive Fan/Blower |
| Motor Thermal Protection | Auto |
| Mounting Holes | 4 |
| Mounting Stud Location | Opposite Shaft End |
| Nameplate RPM | 3,000 |
| No. of Speeds | 1 |
| Number of Shafts | 1 |
| O.C. Mounting (in) | 1-7/8 |
| Phase | Single |
| Shaft Dia. (in) | 3/16 |
| Shaft Length | 7/8 |
| Stack Size | 7/8 |
| Standards | CSA Certified (701603); UL Recognized (E37403) |
| Stud Quantity | 2 |
| Usable @ 200V | No |
| Usable @ 208V | No |
| Voltage (V AC) | 110/220 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

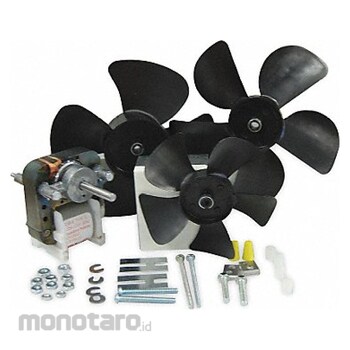

C-frame shaded pole HVAC AC motor kits come with a motor, brackets, and adapters for mounting a C-frame shaded pole HVAC AC motor in fan and blower applications.
Feature
C-Frame Motor Kit Single Phase Motor Design Shaded Pole 1/55 HP Nameplate RPM 3 000 No of Speeds 1 Voltage 110/220V AC Full Load Amps 0.91/0.45 Non-Standard Frame Usable @ 208V No Usable @ 200V No Motor Thermal Protection Auto 60/50 Hz Hz Motor Service Factor 1 Ins. Class B Motor Shaft Rotation CW/CCW Max Ambient Temp 40 Degrees C Duty Cycle Continuous Motor Enclosure Design Open Air-Over Motor Mounting Type Stud Motor Mounting Position All Angle Number of Shafts 1Ulasan Produk
