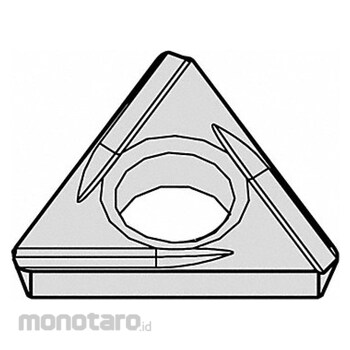

WIDIA Triangle ( T ) Indexable Turning Insert
#Grup produk P109332592
Spesifikasi
| UNSPSC | 23171618 |
|---|---|
| ANSI Code | TPHH3205L |
| Chip-Breaker | Yes |
| Chip-Breaker Style | On One Side |
| Clearance Angle (°) | 11 |
| Coating Process | PVD |
| Corner Radius (inch) | 0.007 |
| Cutting Application | Outside and Inside Diameter Turning |
| Cutting Direction | Left Hand |
| Cutting Edge Length (mm) | 16.5 |
| Finish - Machining | TiN |
| ISO Number | TPHH160302L |
| Included Angle (°) | 60 |
| Inscribed Circle (inch) | 3/8 |
| Insert Code | TPHH32.5 |
| Insert Holding Type | 70° to 90° Countersink Hole |
| Insert Style | TPHH |
| Manufacturer Grade | CG5 |
| Material - Machining | Carbide |
| Measurement System | Fractional Inch |
| Number of Cutting Edges | 3 |
| Primary Material Application | Aluminium, Brass, Bronze, Copper, Magnesium, Nickel, Stainless Steel, Steel, Titanium |
| Primary Material Application ISO Code | M; N; P; S |
| Rake (°) | 15 |
| Secondary Material Application | Cast Iron |
| Secondary Material Application ISO Code | K |
| Shape | Triangle |
| Thickness (inch) | 0.125 |
| Through Hole Inside Dia. (inch) | 0.13 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
Triangle Turning Insert Inscribed Circle 3/8 in TiNUlasan Produk
