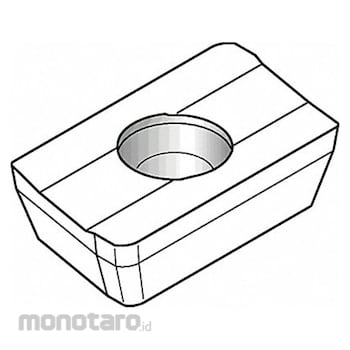

WIDIA Parallelogram Indexable Milling Insert
#Grup produk P109332574
Spesifikasi
| UNSPSC | 23171618 |
|---|---|
| ANSI Code | XPNT160412 |
| Chip-Breaker | No |
| Clearance Angle (°) | 11 |
| Corner Radius (mm) | 1.2 |
| Cutting Direction | Right Hand |
| Cutting Edge Length (mm) | 15.88 |
| Finish - Machining | Bright (Uncoated) |
| For use with | M680 Series 0°/90° Shoulder Mills |
| Hole Type | 40°to 60°Countersink Hole |
| ISO Number | XPNT160412 |
| Included Angle (°) | 80 |
| Insert Holding Type | Taper Screw |
| Insert Size | 160412 |
| Insert Style | XPNT |
| Manufacturer Grade | TTM08 |
| Material - Machining | Carbide |
| Measurement System | Metric |
| Mounting Hole Dia. (mm) | 4.45 |
| Mounting Style | Taper Screw |
| Number of Cutting Edges | 2 |
| Primary Material Application | Steel |
| Primary Material Application ISO Code | P |
| Secondary Material Application | Cast Iron; Stainless Steel |
| Secondary Material Application ISO Code | K; M |
| Series | M680 |
| Shape | Parallelogram |
| Thickness (inch) | 0.1886 |
| Through Hole Inside Dia. (mm) | 4.45 |
| Width (mm) | 9.53 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
Parallelogram Milling Insert XPNT160412 11 DegreesUlasan Produk
