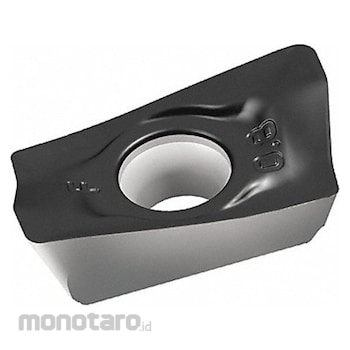

Walter Parallelogram Indexable Milling Insert
#Grup produk P109332079
Spesifikasi
| UNSPSC | 23171618 |
|---|---|
| ANSI Code | ADGT1204PER-F56 WSP45S |
| Chip-Breaker | Yes |
| Chip-Breaker Code | F56 |
| Chip-Breaker Style | 16° Chipbreaker Groove |
| Clearance Angle (°) | 15 |
| Coating Process | PVD |
| Corner Radius (mm) | 0.8 |
| Cutting Application | Medium |
| Cutting Direction | Right Hand |
| Cutting Edge Length (mm) | 13.6 |
| Finish - Machining | TiAlN+Al2O3+Al |
| For use with | Xtra·Tec Milling Cutter |
| Hole Type | Countersink Hole |
| ISO Number | ADGT1204PER-F56 WSP45S |
| Included Angle (°) | 85 |
| Insert Holding Type | Screw |
| Insert Size | 1204 |
| Insert Style | ADGT |
| Lead Angle (°) | 15 |
| Manufacturer Grade | WSP45S |
| Material - Machining | Carbide |
| Measurement System | Metric |
| Mounting Style | Screw |
| Number of Cutting Edges | 2 |
| Primary Material Application | Nickel; Stainless Steel; Steel; Titanium |
| Primary Material Application ISO Code | M; P; S |
| Rake | Positive |
| Secondary Material Application | Nickel; Titanium |
| Secondary Material Application ISO Code | S |
| Shape | Parallelogram |
| Thickness (inch) | 0.187 |
| Width (mm) | 8.4 |
| Wiper Insert | Yes |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
Parallelogram Milling Insert Positive ADGT1204PER-F56 WSP45S F56 16 Degrees Chipbreaker Groove 15 DegreesUlasan Produk
