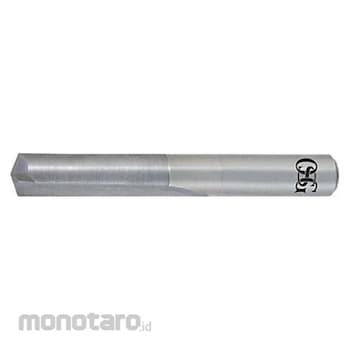

OSG Straight-Flute Drill Bit
#Grup produk P109330619
Kondisi Barang:
Spesifikasi
| UNSPSC | 27112801 |
|---|---|
| Aircraft Drill | No |
| Coolant Fed | Non-Coolant Through |
| Cutting Direction | Right Hand |
| Depth:Dia. Ratio | 5xD |
| Drill Bit Point Angle (°) | 140 |
| Drill Bit Point Type | 4 Facet Point |
| Drill Diameter Tolerance (mm) | +0.000/-0.013 |
| Drill Length Class | Jobber Length |
| Finish - Machining | Bright (Uncoated) |
| Flute Type | Straight |
| Helix Angle (°) | 0 (zero) |
| Material - Machining | Carbide |
| Measurement System | Fractional Inch |
| Number of Flutes | 2 |
| Primary Material Application | Cast Iron; Steel |
| Primary Material Application ISO Code | K; P |
| Shank Type - Machining | Straight |
| Sheeter Drill | No |
| Standards | Not Rated |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
The bright finish on these straight-flute drill bits is unaffected when the bits' cutting edges are resharpened. Carbide drill bits provide excellent hardness, wear resistance, and heat resistance. They require a rigid setup such as a drill press.
Feature
Straight Flute Drill Bit Drill Bit Size #30 140 Degrees Drill Bit Point Angle Material - Machining Carbide Finish - Machining Bright (Uncoated) Decimal Equivalent 0.1285 Wire 4 Facet Point Drill Bit Point Type Flute Length 15/16 inDokumentasi Produk
