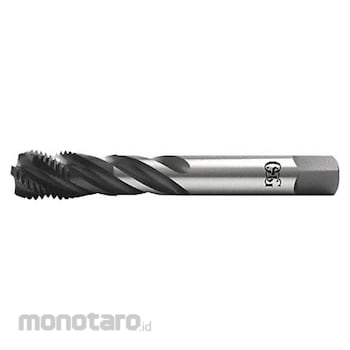

OSG High-Performance Spiral-Flute Tap for Multiple Material
#Grup produk P109330132
Kondisi Barang:
Spesifikasi
| UNSPSC | 23153305 |
|---|---|
| Coolant Fed | Non-Coolant Through |
| Extended Neck | Yes |
| Helix Angle (°) | 45 |
| Measurement System | Fractional Inch |
| Shank Type - Machining | Straight |
| Tap Chamfer | Modified Bottoming |
| Tap Material | High Speed Steel |
| Tap Shank Standard | ANSI |
| Tap Style | Spiral Flute |
| Thread Direction | Right Hand |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
The black-oxide finish on these taps retains lubricants to improve the taps' wear resistance and chip flow. Black-oxide taps should only be used on ferrous metals. These taps meet DIN length standards and have a longer overall length than taps that meet ISO, ANSI, and JIS length standards. They also meet ANSI shank standards, which means they measure their shank diameter in inches and fit in standard tools used in the U.S.
Feature
Spiral Flute Tap Thread Size 3/4 In.-10 UNC Overall Length 4 29/32 in High Speed Steel Black Oxide Thread Length 3/4 in 75 Percent Thread Drill Size 16.50 Thread Limit 2B Class of Fit 2B Thread Direction Right Hand Number of Flutes 4Dokumentasi Produk
