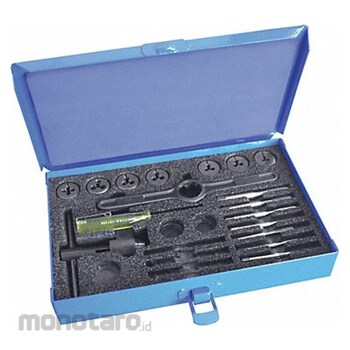

GREENFIELD THREADING Tap & Die Set
#Grup produk P109325477
Sebelum PPN:
Rp11.999.900 - Rp81.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| UNSPSC | 23153305 |
|---|---|
| Case Type | Metal |
| Class of Fit | 2B |
| Coolant Fed | Non-Coolant Through |
| Die Finish | Bright (Uncoated) |
| Die Material | High Speed Steel |
| Die Material Grade | Carbon Steel |
| Die Shape | Round |
| Die Type | Adjustable |
| Extended Neck | No |
| Extended Shank | No |
| Extension Tap | No |
| Features | General Purpose Applications |
| Finish - Machining | Bright (Uncoated) |
| Helix Angle (°) | 0 (zero) |
| Material - Machining | High Speed Steel |
| Powdered Metal Base Material | No |
| Primary Material Application | All Materials |
| Primary Material Application ISO Code | H; K; M; N; P; S |
| Secondary Material Application | Stainless Steel |
| Secondary Material Application ISO Code | M |
| Spiral Direction | Neutral |
| Standards | ANSI |
| Tap Finish | Bright (Uncoated) |
| Tap Material | High Speed Steel |
| Tap Material Grade | M2 |
| Tap Overall Length | Table 302 |
| Tap Series | 411 |
| Tap Shank Dia. | Table 302 |
| Tap Shank Standard | Table 302 |
| Tap Type | Hand Tap |
| Thread Direction | Right Hand |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These sets contain high-speed steel taps that provide good wear resistance when creating internal threads in general purpose tapping applications in a range of materials, including ferrous and non-ferrous metals. The sets also contain carbon steel dies, which are an economical choice for external-threading applications in maintenance operations.
Feature
Tap and Die Set Number of Pieces 17 Die Shape Round Tap Type Hand Tap Die Material High Speed Steel Thread Sizes Included M2.5 x 0.45 M3 x 0.5 M3.5 x 0.6 M4 x 0.7 M4.5 x 0.75 M5 x 0.8 M6 x 1.0 Die Thread Sizes Included M2.5 x 0.45 M3 x 0.5 M3.5 x 0.6 M4 x 0.7 M4.5 x 0.75 M5 x 0.8 M6 x 1.0 Number Of Taps 7 Number of Dies in Set 7 Tap Shank Standard Table 302Ulasan Produk
