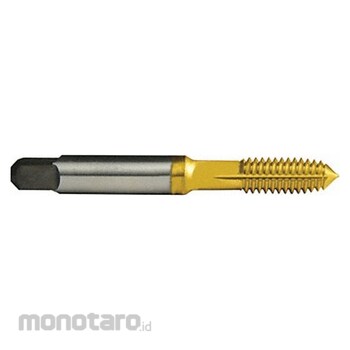

GREENFIELD THREADING General Purpose Chip-Free Thread-Forming Tap
#Grup produk P109325334
Spesifikasi
| UNSPSC | 23153305 |
|---|---|
| 55% Thread Drill Size (mm) | 8.9 |
| 65% Thread Drill Size (mm) | 8.8 |
| 75% Thread Drill Size (inch) | 11/32 |
| Class of Fit | 2B-3B |
| Extended Neck | Yes |
| Material Grade - Machining | FTGP-TN |
| Overall Length (inch) | 2-15/16 |
| Primary Material Application | Aluminium, Brass, Bronze, Copper, Steel |
| Primary Material Application ISO Code | N; P |
| Shank Diameter (inch) | 3/8 |
| Shank Length (inch) | 1-11/16 |
| Spiral Direction | Neutral |
| Square Size (inch) | 0.286 |
| Standards | USCTI Table 302A |
| Tap Chamfer | Plug |
| Tap Finish | TiN |
| Tap Material | High Speed Steel |
| Tap Style | Thread Forming |
| Thread Direction | Right Hand |
| Thread Length (inch) | 3/4 |
| Thread Limit | H7 |
| Thread Limit / Class of Fit | H7 / 2B-3B |
| Thread Size | 3/8\"-16 |
| Thread Standard | UNC |
| Thread per Inch | 16 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
The TiN coating on these taps protects them from wear and allows them to be used at higher speeds than taps with a bright finish.
Feature
Thread Forming Tap Thread Size 3/8 In.-16 UNC Overall Length 2 15/16 in High Speed Steel TiN Right Hand Thread Length 3/4 in 75 Percent Thread Drill Size 11/32 in Thread Limit H7 Class of Fit 2B-3BUlasan Produk
