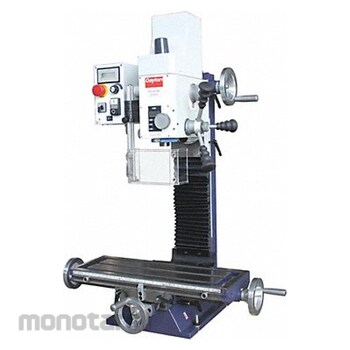

DAYTON Mill Drill
#Grup produk P109323187
Kondisi Barang:
Bergaransi
Informasi selengkapnya terkait garansi
dapat ditemukan pada Rincian Produk
dapat ditemukan pada Rincian Produk
Garansi Produk: WARRANTY MonotaRO Private Brand (1 year)
Spesifikasi
| UNSPSC | 27112703 |
|---|---|
| Chuck Size | Not Included |
| Cross Travel (inch) | 6-7/8 |
| Drilling Capacity Steel (inch) | 5/8 |
| End Milling Capacity (inch) | 3/4 |
| Face Milling Capacity (inch) | 2 |
| Features | Box Column with Dovetails Ways; Brushless DC Motor; Head Tilts Left and Right; Requires Chuck and Arbor |
| Frequency (Hz) | 60 |
| Graduations (inch) | 0.001 |
| Head | Gear Drive |
| Includes | Halogen Work Light; Safety Chuck Guard; Way Cover |
| Lathe Capacity (inch) | 10 to 20 |
| Longitudinal Travel (inch) | 11 |
| Motor Horsepower (HP) | 1-1/2 |
| Operation | Manual |
| Phase | 1 |
| Power Source | Corded |
| Quill Dia. (inch) | 2-23/64 |
| Speed (rpm) | 90 to 3000 |
| Spindle | 2MT |
| Spindle Speed (rpm) | 90 to 3000 |
| Spindle Taper | MT2 |
| Spindle Travel (inch) | 2 |
| Spindle to Table (inch) | 13-3/16 |
| Swing (inch) | 14 |
| T-Slot Width (inch) | 15/32 |
| Table Surface Height (inch) | 6-1/8 |
| Table Work Surface (inch) | 20x7 |
| Voltage (V) | 120 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
Mill Drill Machine Phase 1 Swing 14 inUlasan Produk
