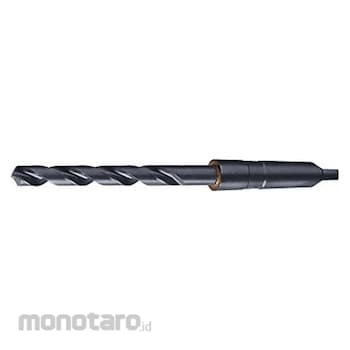

CLEVELAND Taper-Shank Drill Bit
#Grup produk P109322489
Spesifikasi
| UNSPSC | 27112801 |
|---|---|
| Coolant Fed | Non-Coolant Through |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 1 |
| Depth:Dia. Ratio | 4xD |
| Drill Bit Point Angle (°) | 118 |
| Drill Bit Point Type | Conventional Point |
| Drill Bit Size (inch) | 1 |
| Drill Diameter Tolerance (inch) | +0.0000 /-0.0012 |
| Finish - Machining | Black Oxide |
| Flute Length (inch) | 6-3/8 |
| Flute Type | Spiral |
| Helix Angle (°) | 21 to 34 |
| Material - Machining | High Speed Steel |
| Material Grade - Machining | General Purpose |
| Maximum Drilling Depth (inch) | 6-3/8 |
| Measurement System | Fractional Inch |
| Number of Flutes | 2 |
| Overall Length (inch) | 11 |
| Primary Material Application | Cast Iron; Steel |
| Primary Material Application ISO Code | K; P |
| Secondary Material Application | Cast Iron |
| Secondary Material Application ISO Code | K |
| Shank Type - Machining | Taper |
| Spiral Direction | Right Hand |
| Standards | ASME B94.11M-1993 |
| Taper Shank Size | MT3 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These drill bits have a black-oxide finish that retains lubricants to improve the bits' wear resistance and chip flow. Black-oxide bits should only be used for drilling ferrous metals. High-speed steel drill bits provide more flexibility and absorb more shock and vibration than cobalt and carbide drill bits, making them suitable for use in manual drilling machines and handheld power tools. They may leave a rough finish on the hole. These bits have spiral flutes that evacuate chips as the bits drill into a workpiece.
Feature
Taper Shank Drill Bit Drill Bit Size 1 in Drill Bit Point Angle 118 Degrees Conventional Point High Speed Steel Black OxideUlasan Produk
