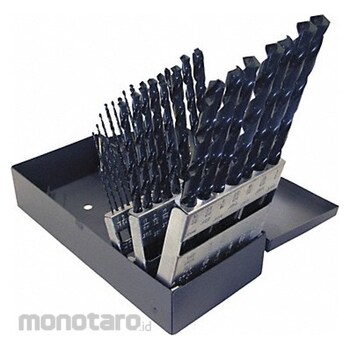

CLEVELAND Taper-Length Drill Bit Set
#Grup produk P109322461
Spesifikasi
| UNSPSC | 27112801 |
|---|---|
| Coolant Fed | Non-Coolant Through |
| Cutting Direction | Right Hand |
| Depth:Dia. Ratio | 4xD |
| Drill Bit Point Angle (°) | 118 |
| Drill Bit Point Type | Conventional Point |
| Drill Bit Sizes Included (inch) | 1/16; 5/64; 3/32; 7/64; 1/8; 9/64; 5/32; 11/64; 3/16; 13/64; 7/32; 15/64; 1/4; 17/64; 9/32; 19/64; 5/16; 21/64; 11/32; 23/64; 3/8; 25/64; 13/32; 27/64; 7/16; 29/64; 15/32; 31/64; 1/2 |
| Drill Length Class | Taper Length |
| Finish - Machining | Black Oxide |
| Flute Type | Spiral |
| Material - Machining | High Speed Steel |
| Measurement System | Fractional Inch |
| Primary Material Application | All Materials |
| Primary Material Application ISO Code | K; P |
| Shank Diameter (inch) | 1/16 -1/2 |
| Shank Type - Machining | Straight |
| Standards | ASME B94.11M-1993 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
The high-speed steel taper-length drill bits in these sets provide good flexibility and absorb some shock and vibration, making them suitable for use in manual drilling machines and handheld power tools. They may leave a rough finish on the hole. The bits have a black-oxide finish that retains lubricants to improve the bits' wear resistance and chip flow. Black-oxide drill bits should only be used for drilling ferrous metals. These sets include drill bits in a range of sizes.
Feature
Taper Length Drill Bit Set Number of Drill Bits 29 Drill Bit Point Angle 118 Degrees High Speed Steel Black Oxide Non-Coolant Through Cutting Direction Right Hand Depth Dia Ratio 4xDUlasan Produk
