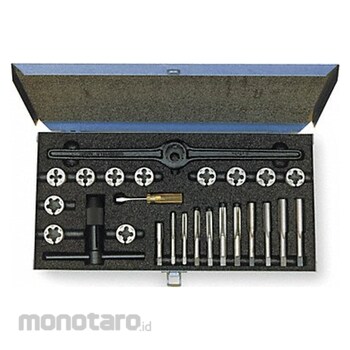

CLEVELAND Tap & Die Set
#Grup produk P109322407
Spesifikasi
| UNSPSC | 23153305 |
|---|---|
| 55% Thread Drill Size | #3; 10.20mm; 11.30mm; 11.80mm; 11/32inch; 5.70mm; 8.40mm; 9/32inch; I; W |
| 65% Thread Drill Size | #5; 10.00mm; 11.00mm; 11.60mm; 17/64inch; 7/32inch; J; P; R; V |
| 75% Thread Drill Size | #7; 11.40mm; 27/64inch; 5.45mm; 5/16inch; 8.50mm; 9.95mm; F; I; U |
| Case Type | Metal |
| Class of Fit | 2B |
| Coolant Fed | Non-Coolant Through |
| Die Finish | Bright (Uncoated) |
| Die Material | High Speed Steel |
| Die Material Grade | Carbon Steel |
| Die Series | 610 |
| Die Shape | Round |
| Die Thread Sizes Included | 1/2\"-13 NC; 1/2\"-20 NF; 1/4\"-20 NC; 1/4\"-28 NF; 1/8\"-27 NPT; 3/8\"-16 NC; 3/8\"-24 NF; 5/16\"-18 NC; 5/16\"-24 NF; 7/16\"-14 NC; 7/16\"-20 NF |
| Die Type | Adjustable |
| Dimensions Standard | Fractional Inch |
| Extended Neck | No |
| Extended Shank | No |
| Extension Tap | No |
| Features | General Purpose Applications |
| Finish - Machining | Bright (Uncoated) |
| Helix Angle (°) | 0 (zero) |
| Material - Machining | High Speed Steel |
| Max. Die Thread Size | 1/2\"-20 |
| Max. Tap Thread Size | 1/2\"-20 |
| Measurement System | Fractional Inch |
| Min. Bore Dia. (inch) | 1/8\" -27 NPT |
| Min. Tap Thread Size | 1/8\"-27 |
| Number of Dies in Set | 11 |
| Number of Flutes | 4 |
| Number of Pieces | 25 |
| Number of Taps | 11 |
| Powdered Metal Base Material | No |
| Primary Material Application | All Materials |
| Primary Material Application ISO Code | H; K; M; N; P; S |
| Secondary Material Application | Stainless Steel |
| Secondary Material Application ISO Code | M |
| Spiral Direction | Neutral |
| Standards | ANSI |
| Tap Chamfer | Plug |
| Tap Finish | Bright (Uncoated) |
| Tap Material | High Speed Steel |
| Tap Material Grade | M2 |
| Tap Overall Length | Table 302 |
| Tap Series | 411 |
| Tap Shank Dia. | Table 302 |
| Tap Shank Standard | Table 302 |
| Tap Sizes Included | 1/2in -13 NC; 1/2in -20 NF; 1/4in -20 NC; 1/4in -28 NF; 1/8in -27 NPT; 3/8in -16 NC; 3/8in -24 NF; 5/16in -18 NC; 5/16in -24 NF; 7/16in -14 NC; 7/16in -20 NF |
| Tap Type | Hand Tap |
| Tap Wrench Number | T10 |
| Thread Direction | Right Hand |
| Thread Limit | H3 |
| Thread Sizes Included | 1/2\"-13 NC; 1/2\"-20 NF; 1/4\"-20 NC; 1/4\"-28 NF; 1/8\"-27 NPT; 3/8\"-16 NC; 3/8\"-24 NF; 5/16\"-18 NC; 5/16\"-24 NF; 7/16\"-14 NC; 7/16\"-20 NF |
| Thread Standard | NPT; UNC; UNF |
| Thread Type | NPT; UNC; UNF |
| Thread per Inch | 8; 9; 10; 11; 12; 13; 14; 16; 18; 20; 24; 27; 28 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These sets contain high-speed steel taps that provide good wear resistance when creating internal threads in general purpose tapping applications in a range of materials, including ferrous and non-ferrous metals. The sets also contain carbon steel dies, which are an economical choice for external-threading applications in maintenance operations.
Feature
Tap and Die Set Number of Pieces 25 Die Shape Round Tap Type Hand Tap Die Material High Speed Steel Thread Sizes Included 1/2 In.-13 NC 1/2 In.-20 NF 1/4 In.-20 NC 1/4 In.-28 NF 1/8 In.-27 NPT 3/8 In.-16 NC 3/8 In.-24 NF 5/16 In.-18 NC 5/16 In.-24 NF 7/16 In.-14 NC 7/16 In.-20 NF Die Thread Sizes Included 1/2 In.-13 NC 1/2 In.-20 NF 1/4 In.-20 NC 1/4 In.-28 NF 1/8 In.-27 NPT 3/8 In.-16 NC 3/8 In.-24 NF 5/16 In.-18 NC 5/16 In.-24 NF 7/16 In.-14 NC 7/16 In.-20 NFProduk Terpopuler
