CLEVELAND Non-Coolant-Through Solid Carbide Jobber-Length Drill Bit
#Grup produk P109322300
Spesifikasi
| UNSPSC | 27112801 |
|---|---|
| Coolant Fed | Non-Coolant Through |
| Cutting Direction | Right Hand |
| Depth:Dia. Ratio | 4xD |
| Drill Bit Point Angle (°) | 118 |
| Drill Bit Point Type | 4 Facet Point |
| Drill Length Class | Jobber Length |
| Finish - Machining | Bright (Uncoated) |
| Flute Type | Slow Spiral |
| Helix Angle (°) | 10 to 20 |
| Material - Machining | Carbide |
| Measurement System | Fractional Inch |
| Number of Flutes | 2 |
| Primary Material Application | Aluminium and Non-Ferrous Material, Cast Iron |
| Primary Material Application ISO Code | K; N |
| Secondary Material Application | Alloy Steel; Low Carbon Steel; Stainless Steel |
| Secondary Material Application ISO Code | M; P |
| Series | 1727 |
| Shank Type - Machining | Straight |
| Sheeter Drill | No |
| Spiral Direction | Right Hand |
| Standards | ASME B94.11M-1993 |
| Web Thinning | Thinned |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

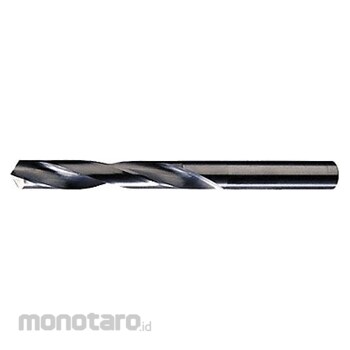

These drill bits come in standard sizes expressed in fractional inches. They have a bright finish that is not affected when the bits' cutting edges are resharpened. They also have spiral flutes that evacuate chips as the bits drill into a workpiece, and they have a straight shank that installs into a drill chuck or similar toolholder.
Feature
Jobber Length Drill Bit Drill Bit Size 1/8 in Drill Bit Point Angle 118 Degrees Carbide Bright (Uncoated) Decimal Equivalent 0.1250 Fractional Inch Drill Bit Point Type 4 Facet Point Non-Coolant Through Number of Coolant Holes 0Ulasan Produk
