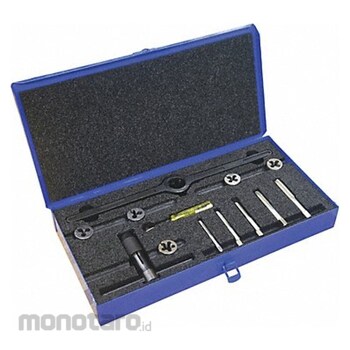

CLE-LINE Tap & Die Set
#Grup produk P109321301
Spesifikasi
| UNSPSC | 23153305 |
|---|---|
| 55% Thread Drill Size | 27/64inch; 5.25mm; 7.10mm; 8.90mm; D |
| 65% Thread Drill Size | 10.50mm; 11/32inch; 13/64inch; C; I |
| 75% Thread Drill Size | 10.30mm; 5.00mm; 6.00mm; 8.50mm; H |
| Case Type | Metal |
| Class of Fit | 2B |
| Coolant Fed | Non-Coolant Through |
| Die Finish | Bright (Uncoated) |
| Die Material | High Speed Steel |
| Die Material Grade | Carbon Steel |
| Die Series | 710 |
| Die Shape | Round |
| Die Thread Sizes Included | M6 x 1.0; M7 x 1.0; M8 x 1.25; M10 x 1.5; M12 x 1.75 |
| Die Type | Adjustable |
| Dimensions Standard | Metric |
| Extended Neck | No |
| Extended Shank | No |
| Extension Tap | No |
| Features | General Purpose Applications |
| Finish - Machining | Bright (Uncoated) |
| Helix Angle (°) | 0 (zero) |
| Material - Machining | High Speed Steel |
| Max. Die Thread Size | M12x1.75 |
| Max. Tap Thread Size | M12x1.75 |
| Measurement System | Metric |
| Min. Tap Thread Size | M6x1 |
| Min. bore dia. | M6x1.0 |
| Number of Dies in Set | 10 |
| Number of Flutes | 4 |
| Number of Pieces | 13 |
| Number of Taps | 10 |
| Powdered Metal Base Material | No |
| Primary Material Application | All Materials |
| Primary Material Application ISO Code | H; K; M; N; P; S |
| Secondary Material Application | Stainless Steel |
| Secondary Material Application ISO Code | M |
| Spiral Direction | Neutral |
| Standards | ANSI |
| Tap Chamfer | Plug |
| Tap Finish | Bright (Uncoated) |
| Tap Material | High Speed Steel |
| Tap Material Grade | M2 |
| Tap Overall Length | Table 302 |
| Tap Series | 411 |
| Tap Shank Dia. | Table 302 |
| Tap Shank Standard | Table 302 |
| Tap Sizes Included | M10 x 1.5; M12 x 1.75; M6 x 1.0; M7 x 1.0; M8 x 1.25 |
| Tap Type | Hand Tap |
| Tap Wrench Number | T10 |
| Thread Direction | Right Hand |
| Thread Limit | D5; D6 |
| Thread Pitch | 1.0; 1.25; 1.5; 1.75 |
| Thread Sizes Included | M6 x 1.0; M7 x 1.0; M8 x 1.25; M10 x 1.5; M12 x 1.75 |
| Thread Type | Metric |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
The taps and dies in these sets are made from high-speed steel. They provide good wear resistance in general purpose internal- and external-threading applications in a range of materials, including ferrous and non-ferrous metals.
Feature
Tap and Die Set Number of Pieces 13 Die Shape Round Tap Type Hand Tap Die Material High Speed Steel Thread Sizes Included M10 x 1.5 M12 x 1.75 M6 x 1.0 M7 x 1.0 M8 x 1.25 Die Thread Sizes Included M10 x 1.5 M12 x 1.75 M6 x 1.0 M7 x 1.0 M8 x 1.25 Number Of Taps 10 Number of Dies in Set 10 Tap Shank Standard Table 302Ulasan Produk
