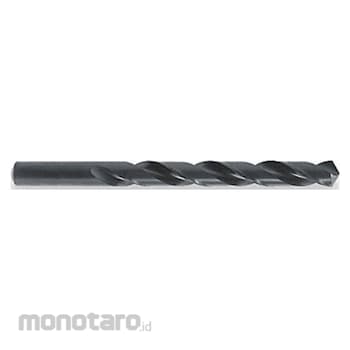

CLE-LINE Non-Coolant-Through High-Speed Steel Jobber-Length Drill Bit
#Grup produk P109321143
Spesifikasi
| UNSPSC | 27112801 |
|---|---|
| Aircraft Drill | No |
| Coolant Fed | Non-Coolant Through |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.2677 |
| Depth:Dia. Ratio | 8xD |
| Drill Bit Point Angle (°) | 135 |
| Drill Bit Point Type | Split Point |
| Drill Bit Size (mm) | 6.8 |
| Drill Diameter Tolerance (inch) | +0.0000/-0.0010 |
| Drill Length Class | Jobber Length |
| Drill Point Length (mm) | 0.0554 |
| Finish - Machining | Black & Gold |
| Flute Length (mm) | 69 |
| Flute Type | Parabolic |
| Helix Angle (°) | 35 to 45 |
| Material - Machining | High Speed Steel |
| Maximum Drilling Depth (inch) | 2-1/32 |
| Measurement System | Metric |
| Number of Flutes | 2 |
| Overall Length (mm) | 109 |
| Primary Material Application | Aluminium and Non-Ferrous Material, Cast Iron, Steel |
| Primary Material Application ISO Code | K; N; P |
| Series | 1872 |
| Shank Length (mm) | 40 |
| Shank Type - Machining | Straight |
| Sheeter Drill | No |
| Spiral Direction | Right Hand |
| Standards | DIN 338 |
| Web Thinning | Thinned |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
The black-oxide finish on these taps retains lubricants to improve the taps' wear resistance and chip flow. Black-oxide taps should only be used on ferrous metals. These taps meet DIN length standards and have a longer overall length than taps that meet ISO, ANSI, and JIS length standards. They also meet ANSI shank standards, which means they measure their shank diameter in inches and fit in standard tools used in the U.S.
Feature
Jobber Length Drill Bit Drill Bit Size 1/32 in Drill Bit Point Angle 118 Degrees High Speed Steel Black Oxide Decimal Equivalent 0.0313 Fractional Inch Drill Bit Point Type Conventional Point Non-Coolant Through Number of Coolant Holes 0Ulasan Produk
