The VMF Reactor is a vertical reciprocating motion type next-generation reciprocating mixer for cell culture that combines together excellent blending performance and gentle mixing. Unlike the general rotating type, severe shear stress control is possible. Moreover, a "completely enclosed structure" that does not require a complex rotating-axis seal mechanism is implemented. There is no threat of contamination or leakage, and it has a high level of sterility and cleanliness.
With the help of the dedicated controller "S-BOX x 10 α II", changes in various parameters including PI control can be easily performed. Through customization, up to eight machines in series are supported.

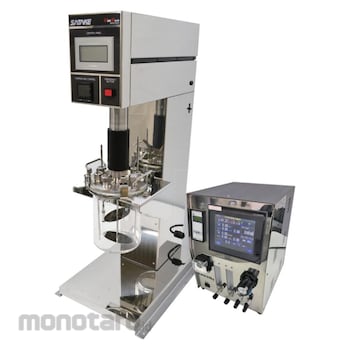

SATAKE Bioreactor Set with Box Controller
#Grup produk P109208143
Spesifikasi
| Temperature Control Range (°C) | Room Temperature +5 to 20 (normally set to 37°C) |
|---|---|
| Temperature Accuracy (°C) | ±0.3 at 37 |
| Max. Up/Down Motion Amplitude (mm) | 40 |
| Maximum Impeller Speed (mm/s) | 300 |
| Band Heater (W) | 480 |
| Total Capacity (L) | 10 |
| Dimensions - Culture Tank (mm) | I.D.200xDepth360 |
| Environment Temperature Range (°C) | 10 to 35 |
| Gas Supply Device | Sintered Metal Type |
| Mixer Motor Power (W) | Max. Power 800 |
| Mixing Impeller | (Standard) VM100+VM200 |
| Outer Dimensions (WxHxD) (mm) | 360x905x485 |
| Power Supply (V/Hz) | AC100/50-60 |
| Power Transmission | Linear shaft drive non-sealing type |
| Temperature Control Method | Band heater (PID control) with anti-excessive temperature rise function (Max. 80°C) |
| Temperature Setting | Digital Setting, data output 1 to 5V |
| Up/Down Motion Setting | Touch Panel Input, Data Output 1 to 10V |
