Peak Meter Three Phase Rotation Indicator
#Grup produk P109207287
Spesifikasi
| Battery | 6F22/9VCurrent |
|---|---|
| Battery Life | minimum 1 year for average use |
| Consumption (mA) | max 20 |
| Current Consumption (mA) | ≤20 |
| Electrical Safety | Meets DIN VDE 0411, IEC 61010 DIN, VDE 04 13-7, EN 61557-7, IEC 61557-7 |
| Frequency Range (Hz) | 2 to 400 |
| Maximum Operating Voltage (Ume) | 400V AC for all ranges |
| Nominal Test Currents (In per phase) | less than 3.5mA |
| Nominal Test Voltage (Ume) | 1 to 400V AC |
| Operating Altitude (m) | 2000 |
| Operating Temperature (°C) | 0 to +40 |
| Operating Voltage (V AC) | 120 to 400 |
| Pollution Degree | 2Mechanical |
| Power Supply | 3×1.5V AA Batteries |
| Product Size(mm) | 128×70×30 |
| Protection Level | CAT III, 600V |
| Safety Rating | EN61010-1,EN61326,CAT.III 600V |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

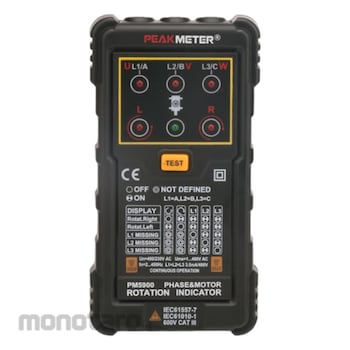

PM5900 is used to test magnetic field direction of three-phase system, phase rotation, motor rotation direction. Without a need to link testing line, the motor rotation direction can be decided by placing this indicator above the motor and aligning it with motor drive shaft. It is durable, reliable and light-weight handled device, which is necessary tool for those who often install, repair or maintain three-phase system or motor.
Feature
- Maximal working voltage: 400V AC Voltage- Nominal voltage (tested at rotation direction): 2~400V AC voltage, 2~400Hz
- Nominal voltage (tested at phase sequence): 120~400V AC voltage, 2~400Hz
- Test current: <3.5mA
