- CT-1111 ORPPH electrodes using PTFE liquid interface of the international state-of-the-art solid dielectric and a large area of clogging, easy maintenance
Reference long-distance dispersal routes, greatly extending electrode life in harsh environments
The PH electrode made of high quality low-noise cable, allows the model output greater than 40 meters in length, no interference
High accuracy, fast response, good repeatability
Widely used in medicine, chlor-alkali industry, pigment dyes, pulp and paper, environmental protection, electroplating and other industries on the redox potential of detection
- 3 PH electrode Features:
PPS / PC shell, the upper and lower 3/4NPT pipe thread, easy installation, no maintenance
No need to supplement the dielectric, little maintenance
Correct operation and long service life
Electrodes can be used with similar foreign electrode swap
ORP electrode installation: can be side or mounted vertically in the reaction tank or pipeline.AL37

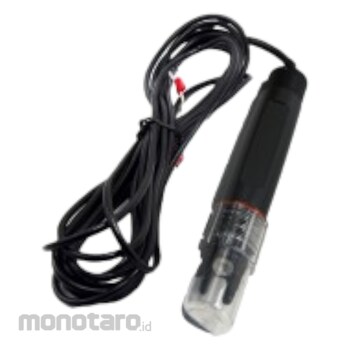

Kedida ORP Electrode
#Grup produk P109206880
Spesifikasi
| Connection Form | Cable (shielded cable) |
|---|---|
| Material | PC.PPS |
| Measurement Accuracy (mv) | ≤ 2 |
| Overall Connection (inch) | 3/4 outer thread |
| pH Range (mV) | ±1999 |
| Platinum (Gold) Purity | 99.99% |
| Response Time (s) | ≤ 10 |
| Size (mm) | 188x31 |
| Temperature (°C) | -5 to 80 |
| Terminal Blocks | BNC head, Y-piece, inserts |
