- Automatic valve, hydraulically activated by the pressure of the pipeline, direct diaphragm sealing weir type with proven reliable design.
- Design for use in any water and foam supply application.
- The valve consists of three major components: body, cover and diaphragm.
- The only moving part is the diaphragm.
- Fast opening and cushioned closure operation.
- Will regulate from near zero flow.
- Exceptionally low pressure losses.
- Flanges to ANSI B16.1, 125 lb. ( other types available on request) .
- UL Listed.
- Fusion Bonded Epoxy Coated Interior and Exterior to AWWA C550 Standard.

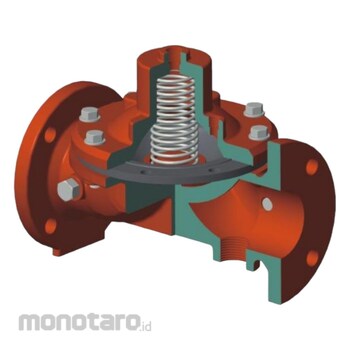

Weflo Deluge Valve Flange ANSI150
#Grup produk P109187859
Sebelum PPN:
Rp45.999.900 - Rp169.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Working Pressure (psi) | 300 |
|---|---|
| Corossion Protection | Internally and externally liquid epoxy painted or fusion binded epoxy powder coated (FBE) |
| Working Temperature (°C) | 0 to 68 for electrical signals, - 4.4 to 68 for wet lead nozzle pipe |
| Body Material | Ductile Iron |
| Control Trim & Accessories | Brass / Stainless Steel |
| Cover Material | Ductile Iron |
| Elastomer Material | Rubber |
