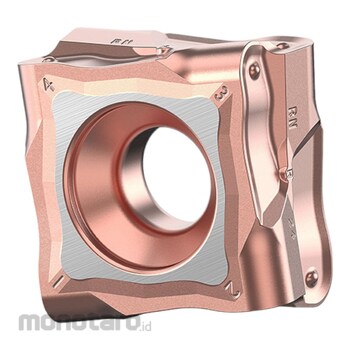

KENNAMETAL FIX8 Negative Insert CNUX-RN
#Grup produk P109166643
Spesifikasi
| Grade | KCP25B |
|---|---|
| [L10] Insert Cutting Edge Length (mm) | 12 |
| [D] Insert IC Size (mm) | 19.05 |
| INS_REG_AP_MAX_M (mm) | 4 |
| [S] Insert Thickness (mm) | 10.58 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for detailsFeature
- Inserts can withstand large cutting forces and vibrations due to the holder's rigid clamping system.- Large depth of cut (up to 12mm) and feed rate (up to 1.4mm) ensure highest possible metal removal rates in steel, cast iron, and stainless steels.
- Ideal for medium machining and roughing reducing cost per edge.
- 8 cutting edges on the insert for higher productivity.
- Tangential design increases the amount of carbide between the workpiece and the tool holder, allowing the system to take higher loads.
- With 15% less cutting forces, FIX8 is also well suited for low horsepower lathes.
