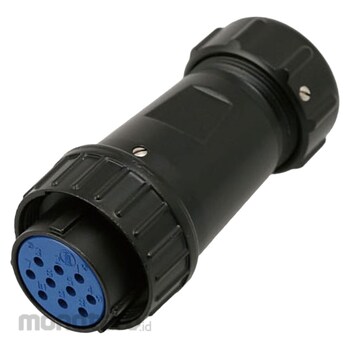

Nanaboshi NJW Series Waterproof Medium Size Connector Straight Plug
#Grup produk P109160108
Spesifikasi
| Shell Size | 24 |
|---|---|
| Contact Shape | Female |
| Shape | Straight |
| Applicable Cable Outer Diameter (Φmm) | 13.1～15.0 |
| Specification | Correct Core (Equipment Side) |
| Kinds | Round Shape |
| Conductor Cross Section Area (mm²) | 1.25 |
| Connector Shape | PF Plug |
| Contact Resistance (miliΩ) | 3 or less |
| Insulation Resistance (MΩ) | 2000 |
| Joining Method | Screw |
| Material (Contact)/Processing | Copper Alloy/Silver Plating |
| Material (Insulator) | Synthetic Resin |
| Material (Packing) | Synthetic Rubber |
| Material (Shell)/Processing | Zinc Alloy/Special Chemical Treatment |
| Number of Poles | 10 |
| Operating Temperature Range (°C) | -25～+85 |
| Rated Current (A) | 10 |
| Rated Voltage (V) | 250 |
| Standard | Electrical Appliance and Material Safety Law |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
Withstand Voltage (V/min) : 1000Wiring Method : Solder
