A simple bearing with cylindrical rollers and raceway in line contact.
It has a large load capacity and mainly carries radial loads.
Since the friction between the rolling elements and the collar of the bearing ring is small, it is suitable for high-speed rotation.
NU type is suitable for free side bearings.
NSK Single Row Cylindrical Roller Bearing Type 200
#Grup produk P109160047
Spesifikasi
| Inner Diameter d(Φmm) | 55 |
|---|---|
| Width B (mm) | 21 |
| Dimensions Fw (mm) | 66 |
| Material (main body) | High Carbon Chrome Bearing Steel |
| Allowable Grease Lubrication Rotation Speed (rpm) | 5600 |
| Allowable Oil Lubrication Rotation Speed (rpm) | 7100 |
| Basic Load Rating Cor(N) | 98500 |
| Basic Load Rating Cr(N) | 86500 |
| Dimensions r (mm) | (Minimum) 1.5 |
| Dimensions r1 (mm) | (minimum) 1.1 |
| Identification Number | 211 |
| Internal Clearance Preload Symbol | CM |
| JIS Grade | 0 |
| Load Direction | Radial |
| Number of Raceway Train | Single Row |
| Outer Diameter d (mm) | 100 |
| Outer Ring Type | Flat |
| Raceway Ring Shape | Cylindrical Roller Bearing |
| Rolling Element Material | High Carbon Chrome Bearing Steel |
| Shield Shape | Open Type |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning

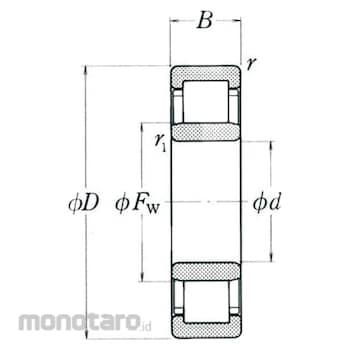

Sample image (Please check the specifications of each product number for details).Ulasan Produk
