On/Off valve.
perrfect sealing with the disc ring made of PTFE.
Two stem structure absorbing the impact in the seat.
Body and Lower Seat Flange made of Stainless Steel.
Gland Packing made of 4 pieces V-packing that
preventing the leak around the stem.
Spring with Shot peening process that improves
the life time.

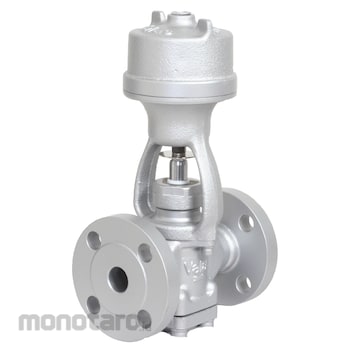

Valas 3 Way Piston Valve
#Grup produk P109157247
Spesifikasi
| Size (inch) | 3/4 |
|---|---|
| Material | Body, lower seat flange, Stem (sus304) |
| Air Supply (kg/cm²) | 2.5 ~ 3.5 (36~50psi) |
| Body Hidraulic test | Max.48kg/cm2 (682psi) |
| End Connection | Flange JIS |
| Fluids | Steam, Industrial Water, Gas(N2), Air, Vacuum |
| Maximum Pressure (kg/cm²) | 32 (455psi) |
| Operation | Normal Close |
| Temperature (°C) | 230 (446°F) |
