Alarm Indication: Flashing or lighting lamp: Red (ALM1),Red (ALM2), Self Latching or Auto reset, Lock-in
Trouble Alarm : Orange lamp flashing (FAULT), Non-latching/Content indication
Alarm Relays: Normally energized or de-energized, Normally-open or closed contact Rated 0.5A at 100VAC, 1.5A at 30VDC (resistive)
Operation Condition: -10 ~ +40°C (14°F to 104°F), 10 ~ 90%RH (non-condensing)
Structure: Card type with front display used enclosed in a case (a single-unit or multi-unit case)

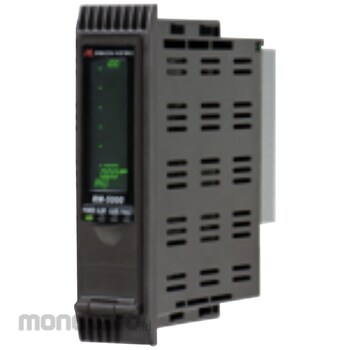

Riken Keiki Multichannel Gas Monitoring
#Grup produk P109157168
Spesifikasi
| Detection Gas | Combustible |
|---|---|
| Power Supply | 24VDC±10% |
| Power Consumption | Max 7W |
| Acceptable Input Signal | Direct sensor signal |
| Applicable Cable | CVV-4C |
| Dimension(mm) | Approx. 29,6 (W) x 120 (H) x 92 (D) |
| Indication | Character LCD (Digital and bar meter <Green, Yellow, Red: 3-colors>) |
| Maximum Distance (km) | 2 |
| Output Signal | Output of electric power transmission (non-isolated) 4-20mADC, max loop load 300Ω |
| Type of Acceptable Detector Head | Catalytic combustion New ceramic |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
- Compatible with RM-570A/580 series- Bar meter and digital multi-indication
- High level of visibility
- Low poers consumption
- Support RS-485 communication function
- RoHS Compliant
- Global standard
Use
- LPG, LNG utilities- Refineries
- Chemical plants
- Semi-conductor manufacturing plants
- Engineering, public works
- Power station
- Iron and steel works
- Automotive Plating Processes
