By setting it on a machine tool, etc., the amount of movement of a moving object can be converted into a digital signal. Flexible mounting position allows for easy measurement.
Achieves outstanding reciprocating durability of over 500,000 cycles

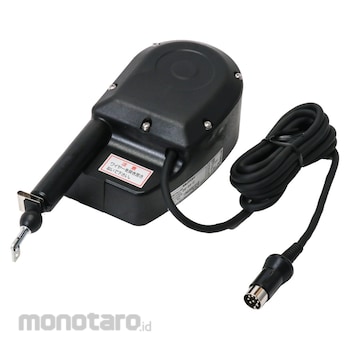

Mutoh Wire Linear Encoder
#Grup produk P109156974
Spesifikasi
| Effective Length (mm) | (wire)4000 |
|---|---|
| Power Supply (V) | DC4.5～26 |
| Accuracy | Distance (at 20℃)/0.05%+quantization error, restoration (at 20℃)/±0.02mm+quantization error |
| Pulse Output | 5 pulses/mm |
| Connection cable | 2m, Φ5.3 (with DIN8P connector) |
| Material (Wire Part) | SUS304 |
| Maximum Acceleration (m/s²) | 7.8(0.8G) |
| Maximum Speed (m/minute) | (Detection)60 |
| Operating Temperature Range (°C) | -10 to 45 (no condensation) |
| Output Format | Open Collector |
| Output Phase | A, B Phase |
| Power Consumption (mA) | 70 or Less |
| Protective Structure | IP63 (Electrical Part Only) |
| Resolution (mm) | 0.1 (When Multiplied by 2) |
| Shock Resistance (m/s²) | Durability/490(50G) |
| Standard Tension (N) | Wire/1.96~4.9(200~500gf) |
| Storage Temperature Range (°C) | -20～80 |
| Transmission distance (m) | 15 or less |
| Vibration Resistance | 30 Minutes at 49m/s 2 (5G) |
| Wire Diameter (mm) | 0.45 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Durability (Number of round trips) 500,000 times (within 0-2m), 200,000 times (2-4m)
Output Level
Residual voltage 0.7V or less, sink current 30mA or less, withstand voltage 30V or less
