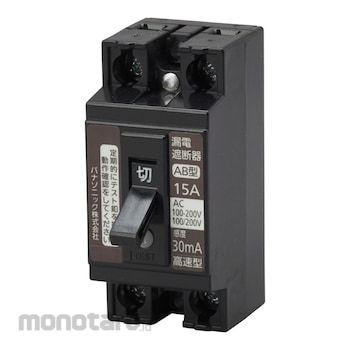

Panasonic Small Earth Leakage Breaker For Electric Lights/Branches
#Grup produk P109153481
Spesifikasi
| Rated Current (A) | 15 |
|---|---|
| Rated Voltage (V) | AC100-100/200-200 |
| Width (mm) | 32 |
| Height (mm) | 70 |
| Connectable Stranded Wire (mm²) | 5.5～8 |
| Connectable Wire: Single Wire (Φmm) | 1.6～2.6 |
| Depth (mm) | 56 (including lever) |
| Frame (AF) | 30 |
| Model | AB-2E |
| Number of Poles/Elements | 2P2E |
| Operating Ambient Temperature (°C) | -10～50 |
| Operating Time | Within 0.1 seconds |
| Overcurrent trip method | Thermal Type |
| Phase wire system | 1Φ2W (single-phase 2-wire system), 1Φ3W (single-phase 3-wire system) |
| Protection Function | Overcurrent, Short Circuit, Leakage |
| Rated Breaking Capacity (kA) | AC100-100/200-200 common 1.5 (200V: 1) |
| Rated Sensitivity Current (mA) | 30 |
| Terminal Shape | Solderless Terminal Terminal With Pad |
| Tightening Torque (n・m) | 1.6～2.0 |
