Kyushu Hasek Carb Flex Coupling
#Grup produk P109153463

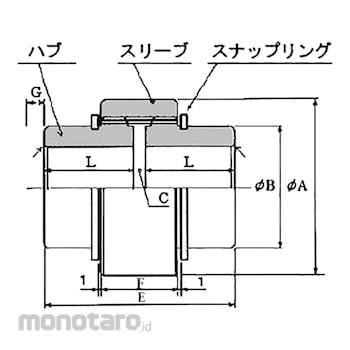

Spesifikasi
| Outer Diameter A (Φmm) | 68 |
|---|---|
| Dimensions c (mm) | 3 |
| Dimensions f (mm) | 25.4 |
| Dimension G (mm) | 0 |
| Allowable Transmission Torque (N・M) | 392.3 |
| Declination angle (allowable displacement) (°) | 1 |
| Dimension B (mm) | phi 50 |
| Dimension L (mm) | 35 |
| Extension (Allowable Displacement) (mm) | 0.3 |
| GD2(g・m2 ) | 1.63 |
| Maximum Rotation Speed (rpm) | 7000 |
| Maximum Shaft Diameter Range (mm) | 34 |
| Pilot Hole Diameter d (mm) | 0 |
| Total Length E (mm) | 73 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Informasi Produk
Description
High-speed, quiet rotation with high-precision gears.
It is small and transmits high torque.
Easy to install, no lubrication required.
Convenient phase adjustment.
Backlash is small.
It is small and transmits high torque.
Easy to install, no lubrication required.
Convenient phase adjustment.
Backlash is small.
