SKY-Packings are the most prominent hydraulic packings for both pistons and rods.
SKY-Packings can be installed in one piece groove. They achieve a cost cut and compacter cylinder design by reducing parts for divided grooves.
Remarks
- The D1 tolerance of SKY-8-5 should be ± 0.1.
- Packings should be installed in the direction specified on the above schematic.
- Consider adopting split grooves if one-piece groove is technically adverse.
- Split grooves are recommended for SKY-18 and smaller products.
- D H9/f8 changes according to the variation of the bearing structure.
- For applications installed in combination with wear rings, refer to the dimension table of the applicable wear rings.

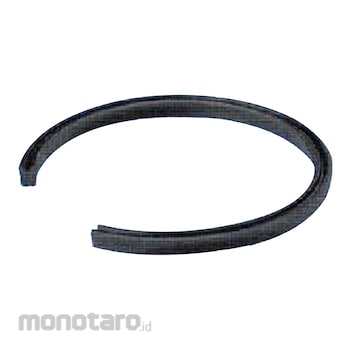

Sakagami Hydraulic Seal SKY Type
#Grup produk P109152783
Spesifikasi
| Pressure (MPa) | 14 |
|---|---|
| Temperature Range (°C) | -10 to 80 |
| Maximum Speed (m/s) | 1 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya- Produk yang diterima akan sesuai dengan informasi model number/part number/size/warna/type/atribut yang tertera pada website
