KY-Packings available in abundant dimensions. With the large cross-sectional area,
KY-Packings provide stable sealing performance in vast applications.
Remarks
- Packings should be installed in the direction specified on the above schematic.
- Adopt split grooves. However, note that D=140 for pistons and larger sizes, and d=80 for rods and larger sizes are installable in one-piece groove.
For these cases, specify back-up rings with bias cut (TC-KY-○○). Besides, one piece groove can be technically adverse for some groove locations.
- D H9/f8 changes according to the variation of the bearing structure. For applications installed in combination with wear rings, refer to the dimension table of the applicable wear rings.

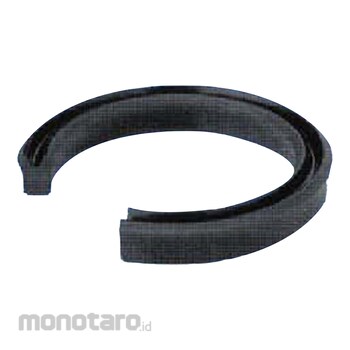

Sakagami Hydraulic Seal KY Type
#Grup produk P109152303
Spesifikasi
| Pressure (MPa) | 15 |
|---|---|
| Temperature Range (°C) | -10 to 80 |
| Maximum Speed (m/s) | 1 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya- Produk yang diterima akan sesuai dengan informasi model number/part number/size/warna/type/atribut yang tertera pada website
