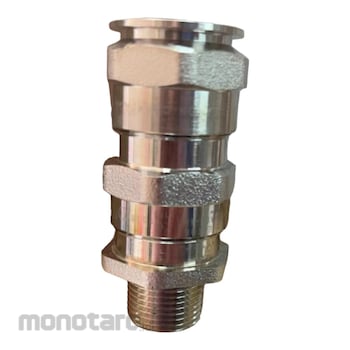

EATON Cable Gland ADE4 Series
#Grup produk P109151650
Spesifikasi
| Thread Size (ISO) | M20 |
|---|---|
| Thread Size (NPT) | 1/2\" |
| Inner Sheath (mm) | 45580 |
| Outer Sheath (mm) | 13.5 - 21 |
| Material | Nickel Plated Brass |
| IP Protection | IP 66/68 |
| Armour (mm) | 0.2 - 1.3 |
| Cable Sealing Range | 3 (Large) |
| Temperature Range (°C) | -60 to +140 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
"Features and benefits:1. Specifically formulated elastomer for IP sealing on outer sheath of cable
2. Universal clamping design for earthing and bonding of armour shield. Provides mechanical strength and is suitable for all armour shield types,with no requirement to reverse components that may introduce risk of incorrect installation.
3. Specifically formulated elastomer for flame path sealing on inner sheath of the cable.
4. Additional external cable clamping for strain relief (optional)
"
Use
"Suitable for the following cable types:• Steel wire armoured cable (SWA)
• Steel wire braided cable (SWB)
• Steel tape armoured cable (STA)
• Braided marine shipboard cable; Type P cable"
